Components [06/2018 - ]

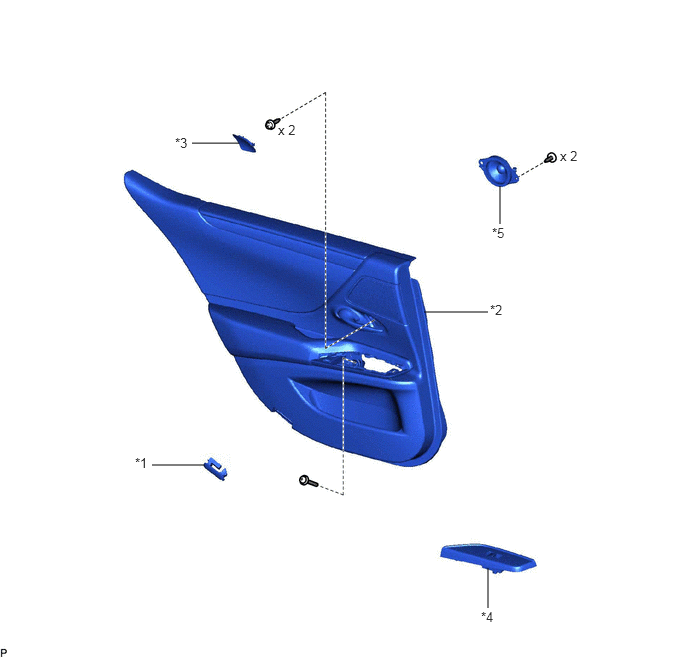

Fig 1: Rear Door Speaker Replacement Components
GTY789028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COURTESY LIGHT ASSEMBLY *2 REAR DOOR TRIM BOARD SUB-ASSEMBLY
*3 REAR DOOR TRIM UPPER PAD *4 REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
*5 REAR SPEAKER ASSEMBLY - -
