Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE (for Side)

    Refer to PROCEDURE - Step 4

  2. REMOVE COWL SIDE TRIM BOARD (for Side)

    Refer to PROCEDURE - Step 5

  3. REMOVE FRONT DOOR OPENING TRIM COVER (for Side)

    Refer to PROCEDURE - Step 6

  4. REMOVE FRONT PILLAR GARNISH ASSEMBLY (for Side)

    Refer to PROCEDURE - Step 7

  5. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)

    Refer to PROCEDURE - Step 41

  6. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for Side)
    NOTE:

    Do not touch the speaker cone.

    1. Remove the 2 bolts.
      GTY797645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 2 speaker assembly and disconnect the connector to remove it.
  7. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)

    Refer to PROCEDURE - Step 34

  8. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for Center)
    NOTE:

    Do not touch the speaker cone.

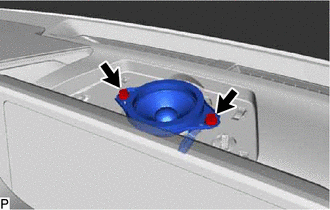

    1. Remove the 2 bolts.
      GTY797636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 3 speaker assembly and disconnect the connector to remove it.
