Removal [06/2018 - ]: Procedure

  1. REMOVE NO. 2 DOOR TRIM PAD

    Refer to PROCEDURE - Step 5 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 6 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - ]

  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 7 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

  4. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

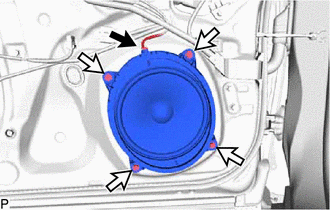

    1. Disconnect the connector.
      GTY797925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws.

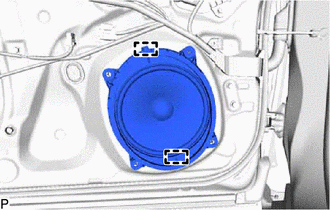

    3. Disengage the 2 guides to remove the front No. 1 speaker assembly.
      GTY832254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (for 17 Speakers)
    NOTE:

    Do not touch the speaker cone.

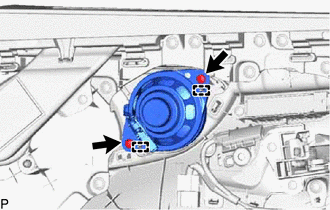

    1. Remove the 2 screws.
      GTY797926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the front No. 4 speaker assembly.
