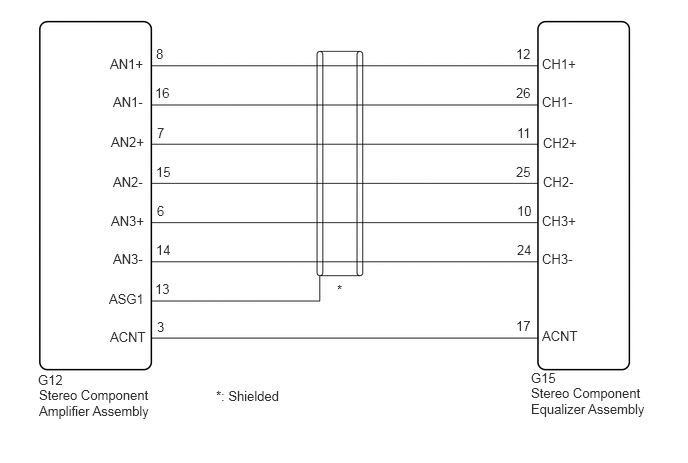

Input / Output Signal Circuit [06/2018 - ]: Wiring Diagram

GTY819806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
