Components [06/2018 - ]

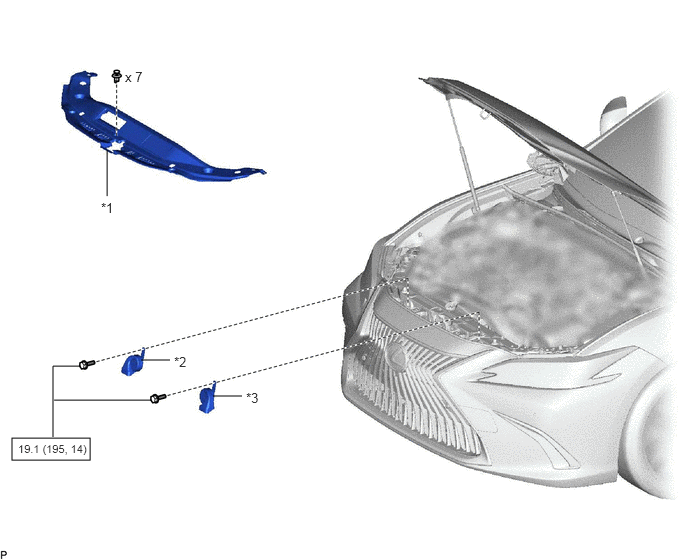

Fig 1: Horn Replacement Components With Torque Specifications
GTY838225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COOL AIR INTAKE DUCT SEAL *2 HIGH PITCHED HORN ASSEMBLY
*3 LOW PITCHED HORN ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
