Parts Location [06/2018 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

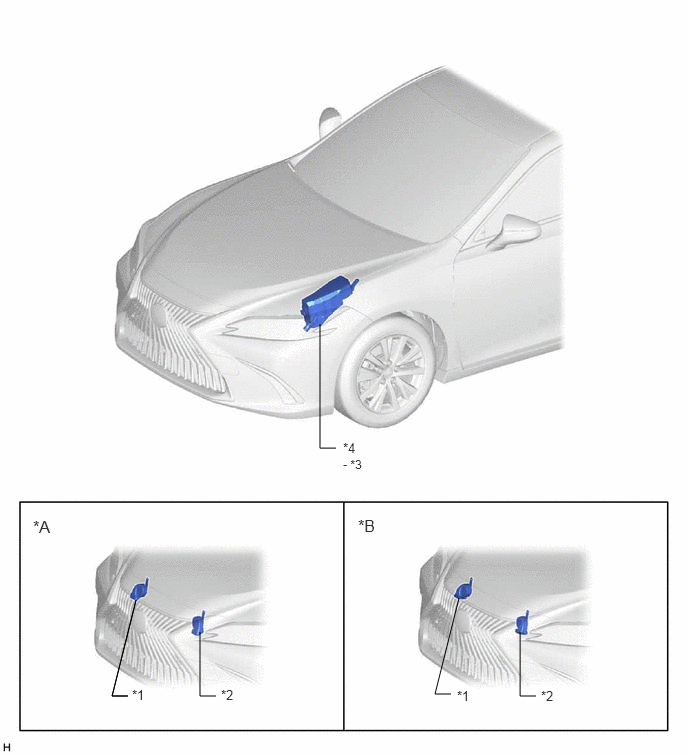

*A	for Type A	*B	for Type B
*1	HIGH PITCHED HORN ASSEMBLY	*2	LOW PITCHED HORN ASSEMBLY
*3	HORN RELAY	*4	ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - HORN FUSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

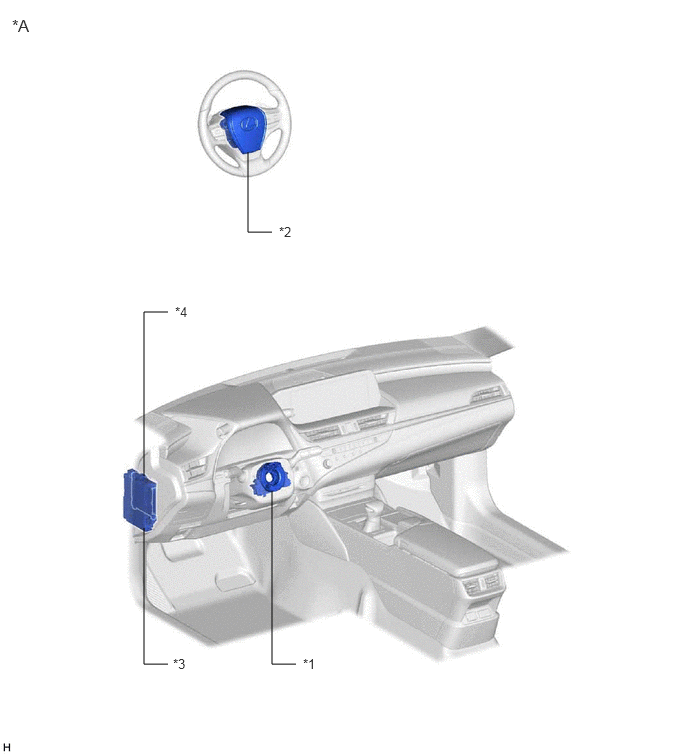

*A	for LHD	-	-
*1	SPIRAL CABLE SUB-ASSEMBLY	*2	HORN BUTTON ASSEMBLY
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
