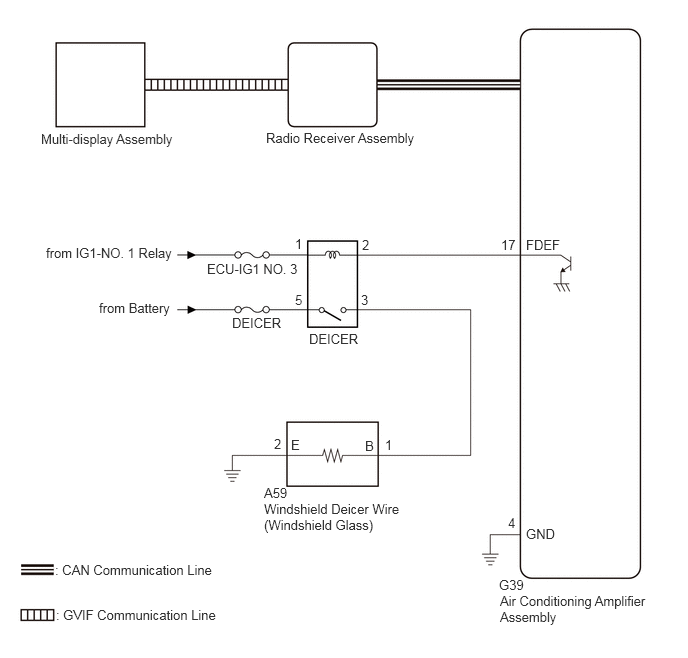

Windshield Deicer does not Operate [06/2018 - ]: Wiring Diagram

GTY799404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
