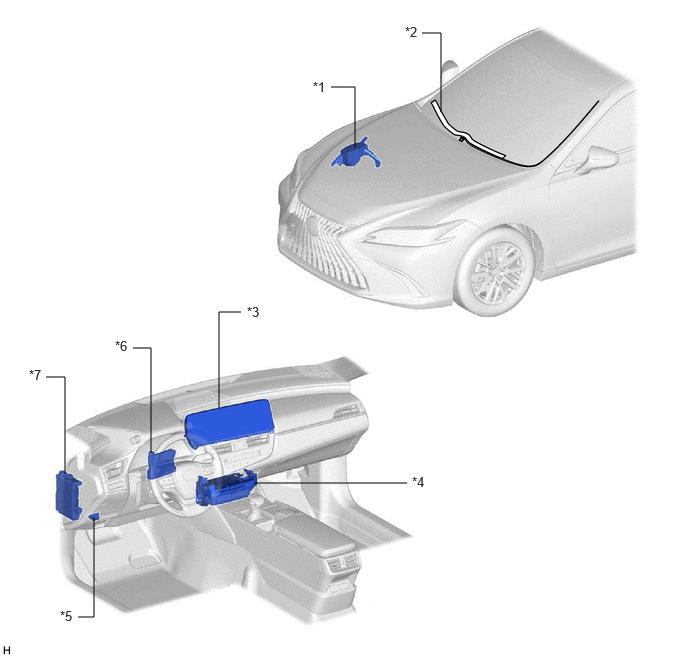

Parts Location [08/2021 - ]: Illustration
| *1 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - DEICER RELAY - DEICER FUSE |
*2 | WINDSHIELD DEICER WIRE (WINDSHIELD GLASS) |
| *3 | MULTI-DISPLAY ASSEMBLY - FRONT WIPER DEICER SWITCH |
*4 | RADIO RECEIVER ASSEMBLY |
| *5 | DLC3 | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG2 NO. 3 FUSE |
- | - |
