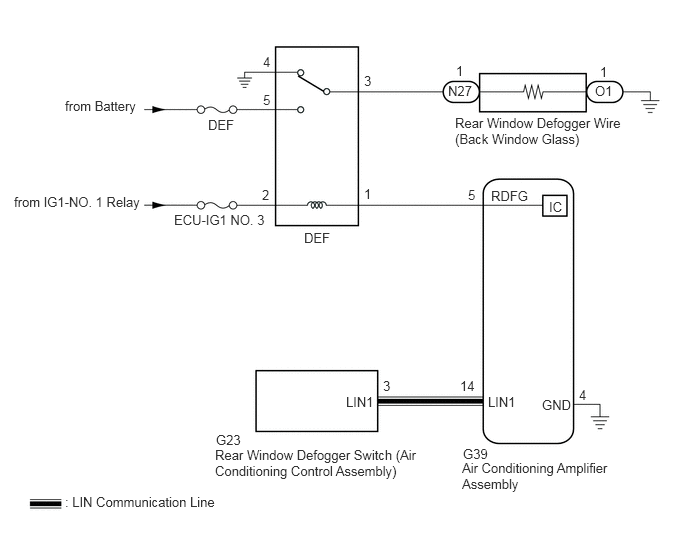

Rear Window Defogger System does not Operate [06/2018 - ]: Wiring Diagram

GTY782627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
