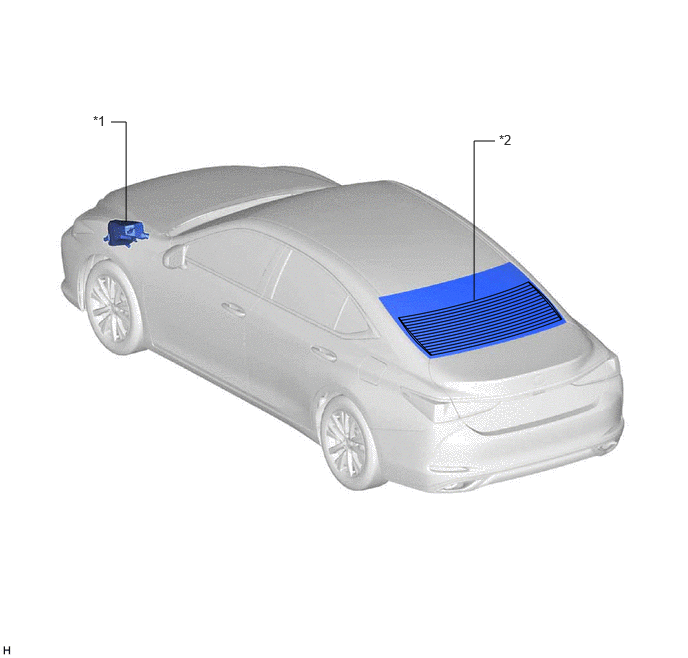

Parts Location [08/2021 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - DEF RELAY - DEF FUSE

*2

REAR WINDOW DEFOGGER WIRE (BACK WINDOW GLASS)

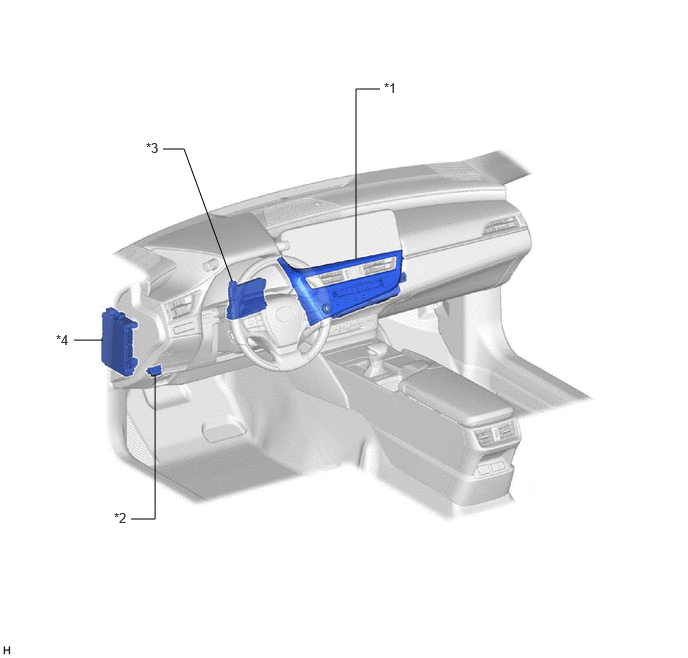

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CONDITIONING CONTROL ASSEMBLY - REAR WINDOW DEFOGGER SWITCH	*2	DLC3
*3	AIR CONDITIONING AMPLIFIER ASSEMBLY	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE
