Parts Location [06/2018 - 08/2021]: Illustration

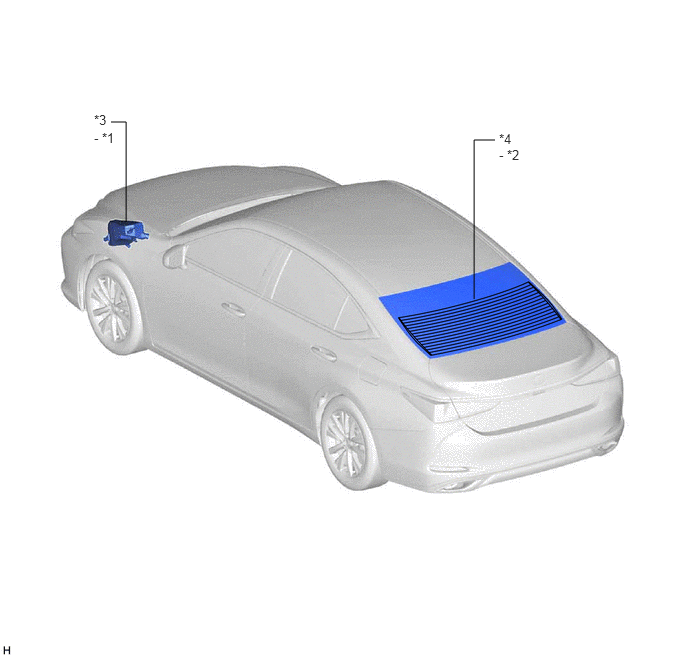

GTY781298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DEF RELAY *2 REAR WINDOW DEFOGGER WIRE
*3 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- DEF FUSE		 *4 BACK WINDOW GLASS

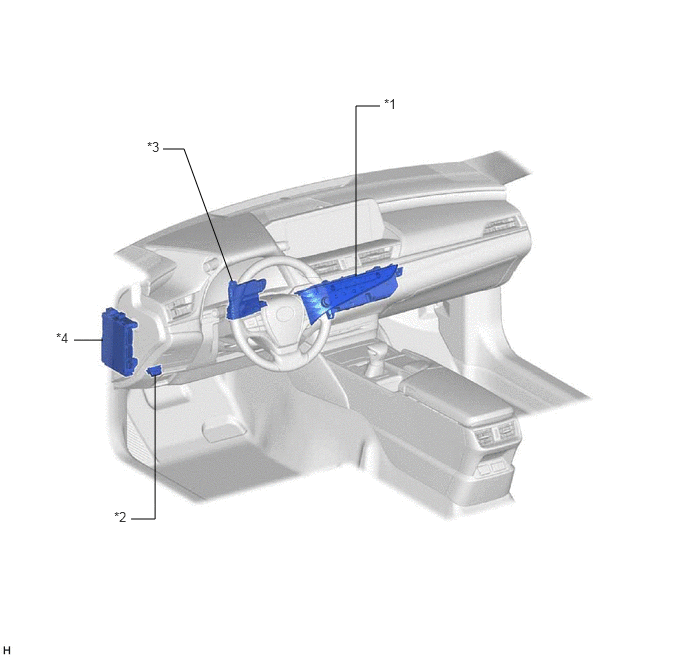

GTY837629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR WINDOW DEFOGGER SWITCH (AIR CONDITIONING CONTROL ASSEMBLY) *2 DLC3
*3 AIR CONDITIONING AMPLIFIER ASSEMBLY *4 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 3 FUSE
