System Diagram [08/2021 - ]

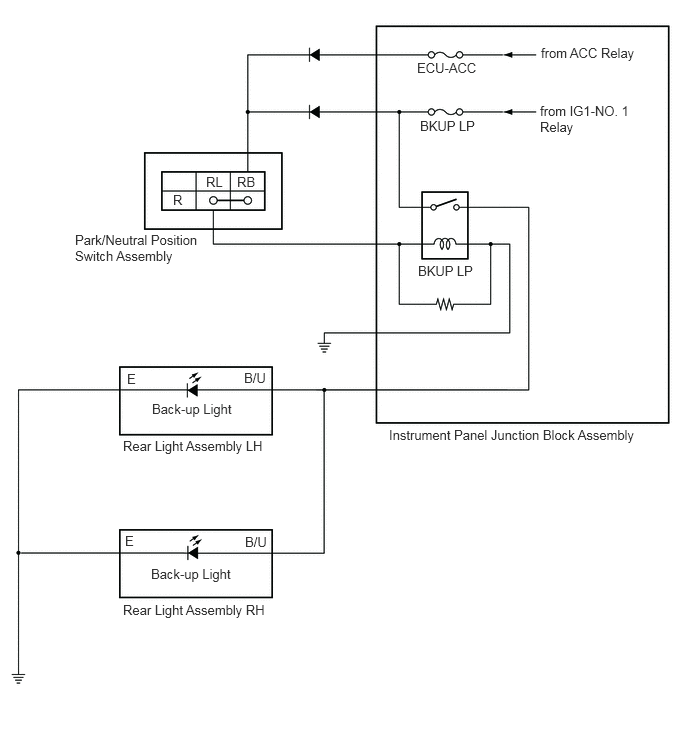

Fig 1: Lighting System Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

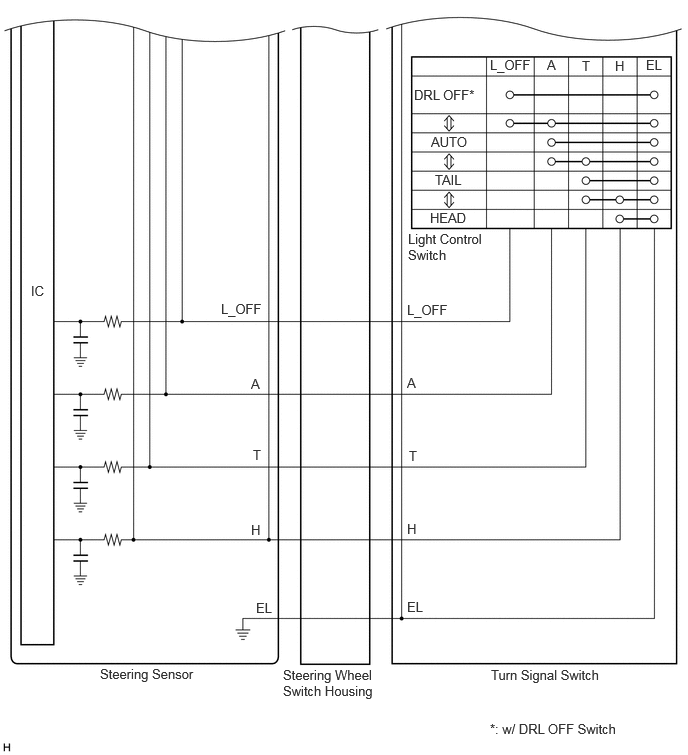

Fig 2: Lighting System Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

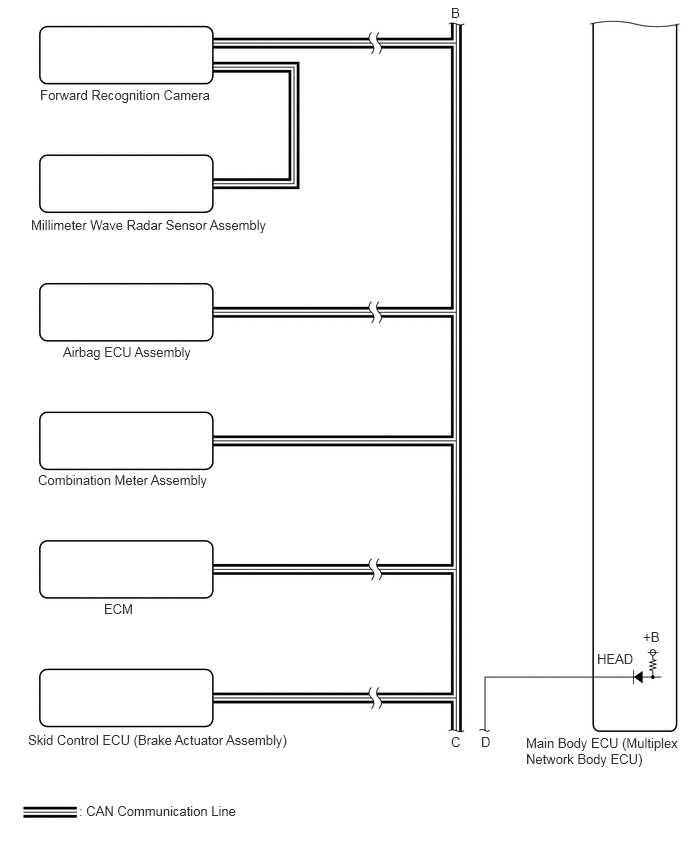

Fig 3: Lighting System Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

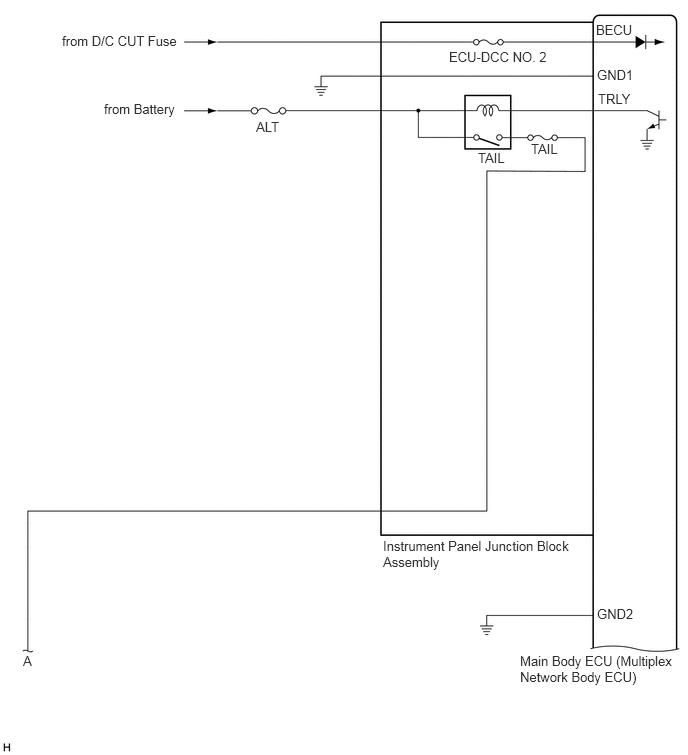

Fig 4: Lighting System Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Lighting System Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Lighting System Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Lighting System Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Lighting System Wiring Diagram (8 Of 11)

Fig 9: Lighting System Wiring Diagram (9 Of 11)

Fig 10: Lighting System Wiring Diagram (10 Of 11)

Fig 11: Lighting System Wiring Diagram (11 Of 11)

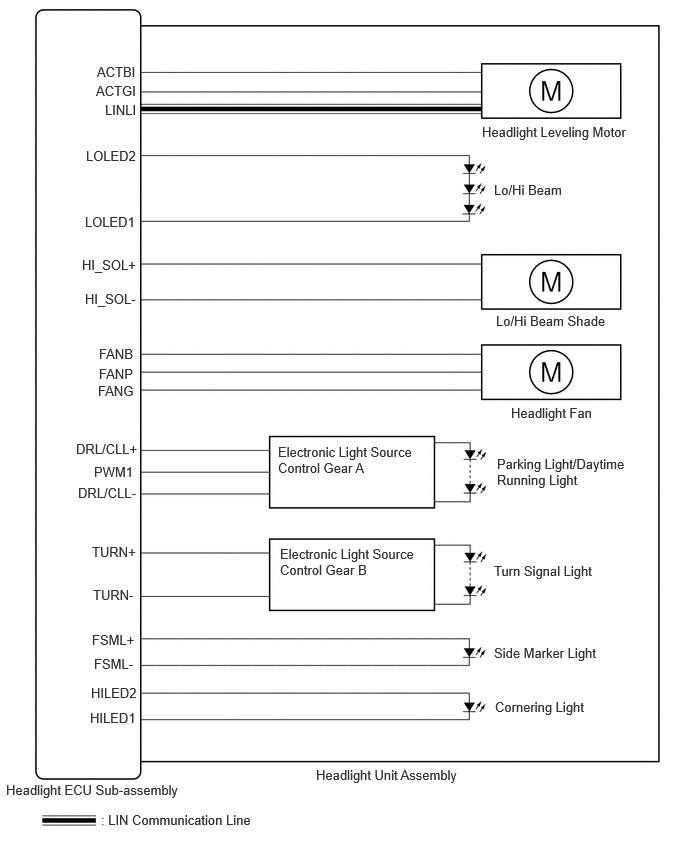

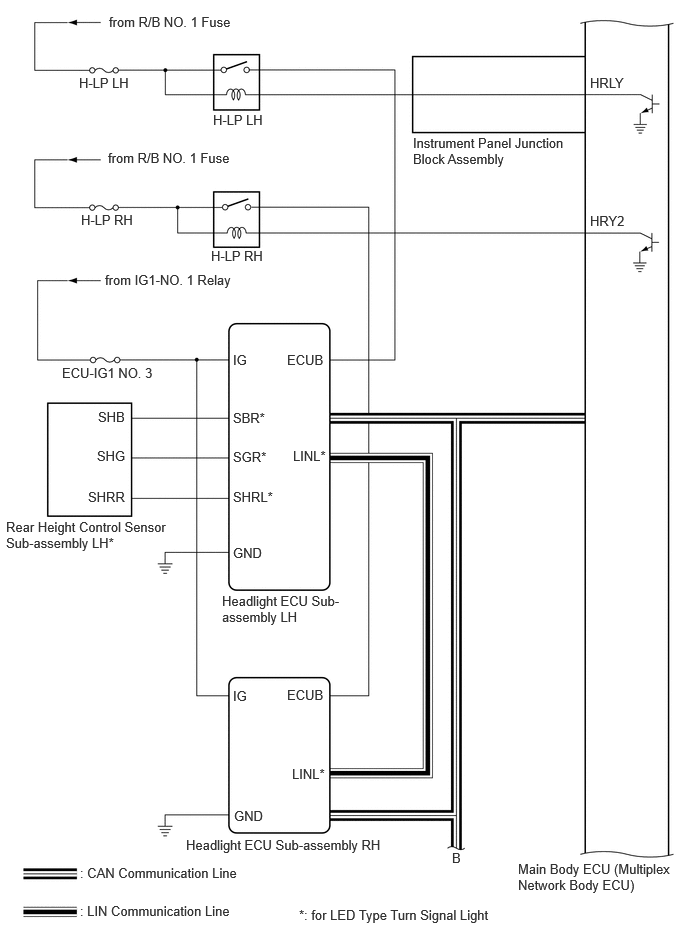

HEADLIGHT ASSEMBLY CIRCUIT (for LED Type Turn Signal Light)

Fig 12: HEADLIGHT ASSEMBLY CIRCUIT (for LED Type Turn Signal Light)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT ASSEMBLY CIRCUIT (for Bulb Type Turn Signal Light)

Fig 13: Headlight Assembly Circuit Diagram (For Bulb Type Turn Signal Light) (For TMMK Made)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
