Parts Location [08/2021 - 09/2022]: Illustration

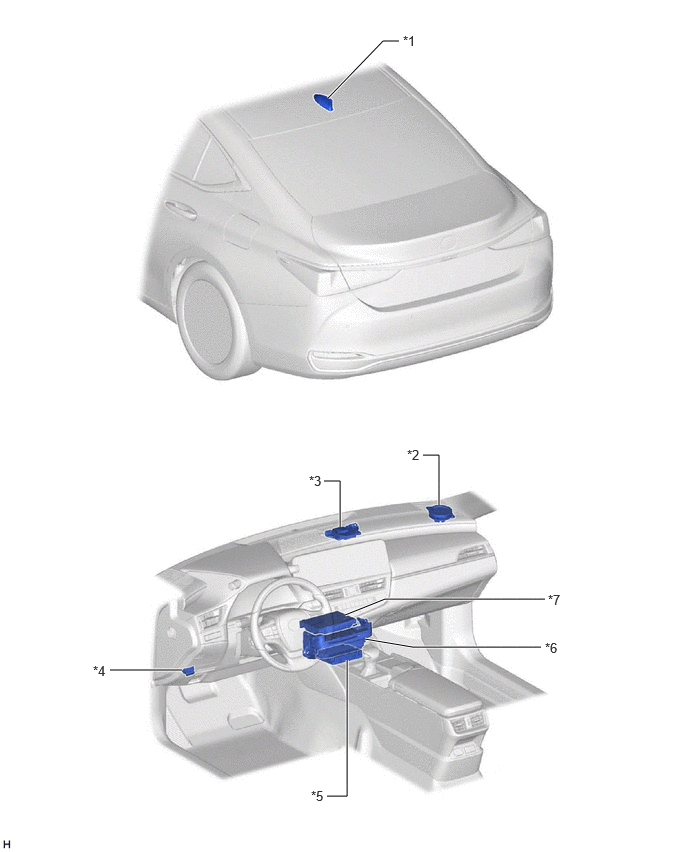

Fig 1: Lexus Enform System (For Gasoline Model) Replacement Components [08/2021 - 09/2022]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ROOF ANTENNA ASSEMBLY - GPS - Telephone Main	*2	FRONT NO. 2 SPEAKER ASSEMBLY RH
*3	NAVIGATION ANTENNA ASSEMBLY - Telephone Sub	*4	DLC3
*5	DCM (TELEMATICS TRANSCEIVER)	*6	RADIO RECEIVER ASSEMBLY
*7	NAVIGATION ECU (w/ Navigation System)	-	-
