Parts Location [06/2018 - 10/2019]: Illustration

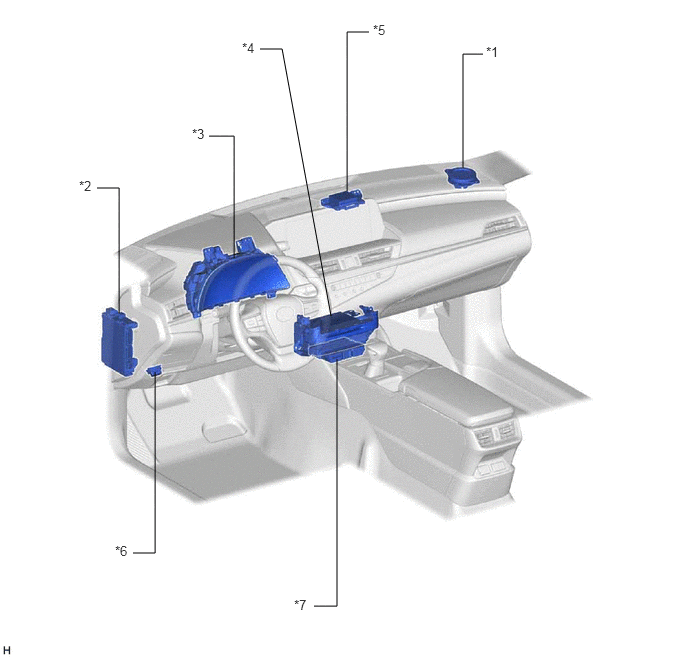

Fig 1: Lexus Enform System (For Gasoline Model) Replacement Components (1 Of 2) [06/2018 - 10/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 2 SPEAKER ASSEMBLY RH	*2	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DCM FUSE - ECU-IG2 NO. 3 FUSE - ECU-ACC FUSE
*3	COMBINATION METER ASSEMBLY	*4	RADIO RECEIVER ASSEMBLY
*5	NAVIGATION ANTENNA ASSEMBLY - GPS - Telephone Sub	*6	DLC3
*7	DCM (TELEMATICS TRANSCEIVER)	-	-

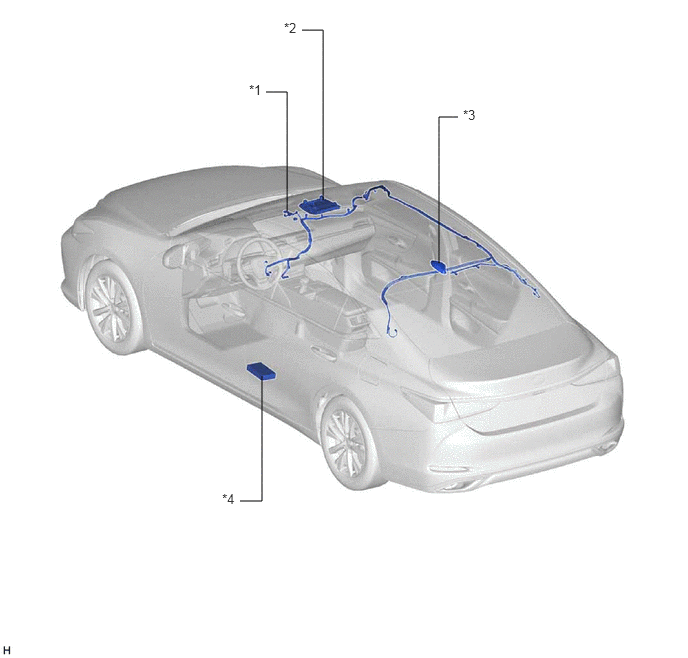

Fig 1: Lexus Enform System (For Gasoline Model) Replacement Components (2 Of 2) [06/2018 - 10/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TELEPHONE MICROPHONE ASSEMBLY	*2	MAP LIGHT SUB-ASSEMBLY - MANUAL (SOS) SWITCH
*3	ROOF ANTENNA ASSEMBLY - GPS - SXM - Telephone Main	*4	STEREO COMPONENT AMPLIFIER ASSEMBLY
