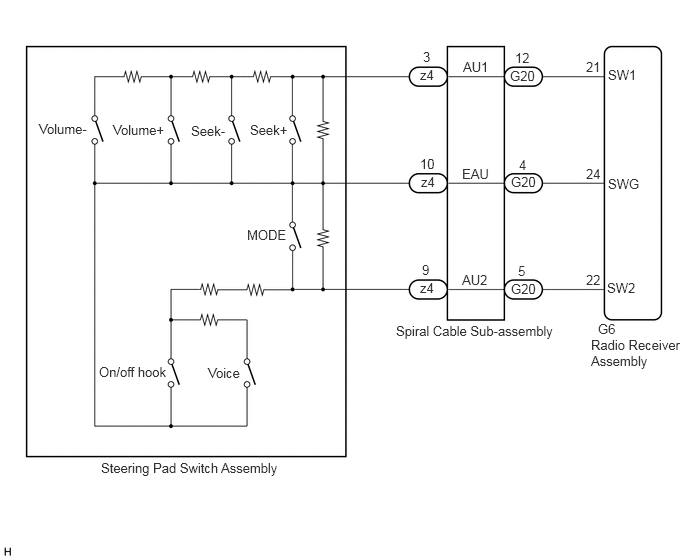

Steering Pad Switch Circuit [06/2018 - 09/2022]: Wiring Diagram

GTY817366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
