Speaker Circuit [10/2019 - 09/2022]: Wiring Diagram

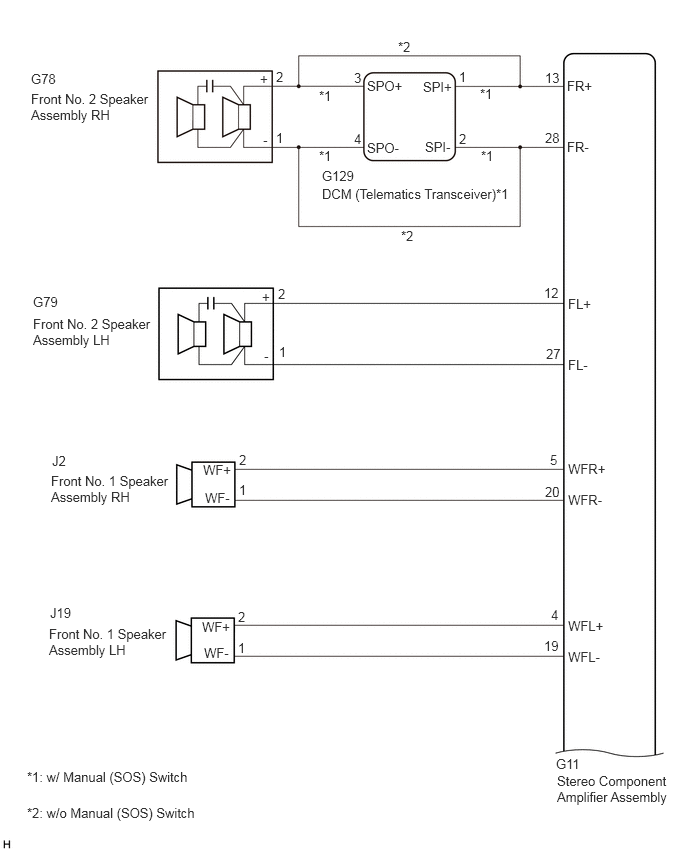

for 10 Speakers

GTY960457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY803247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

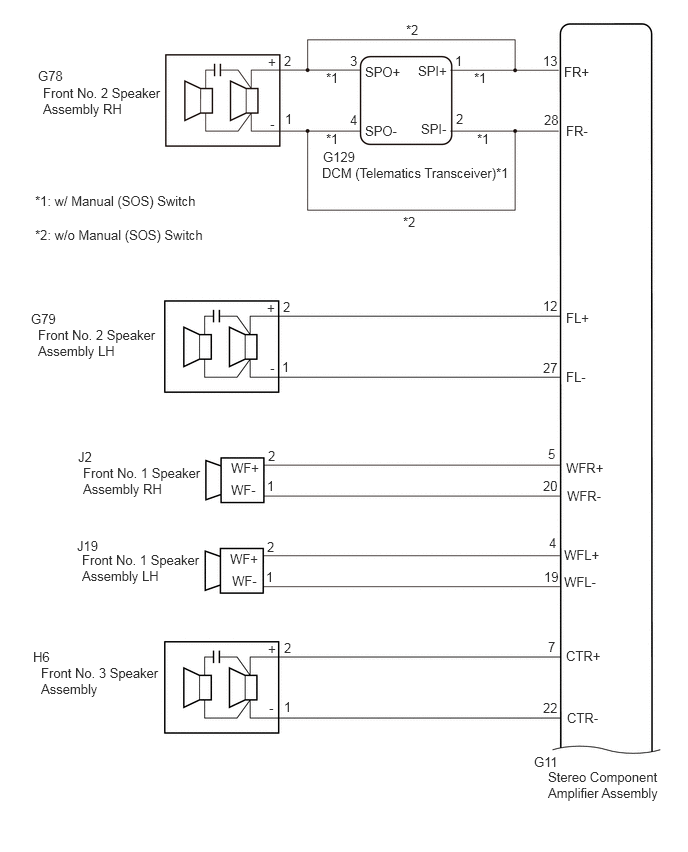

for 17 Speakers

GTY960467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY819956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
