Speaker Circuit [06/2018 - 10/2019]: Wiring Diagram

for 10 Speakers

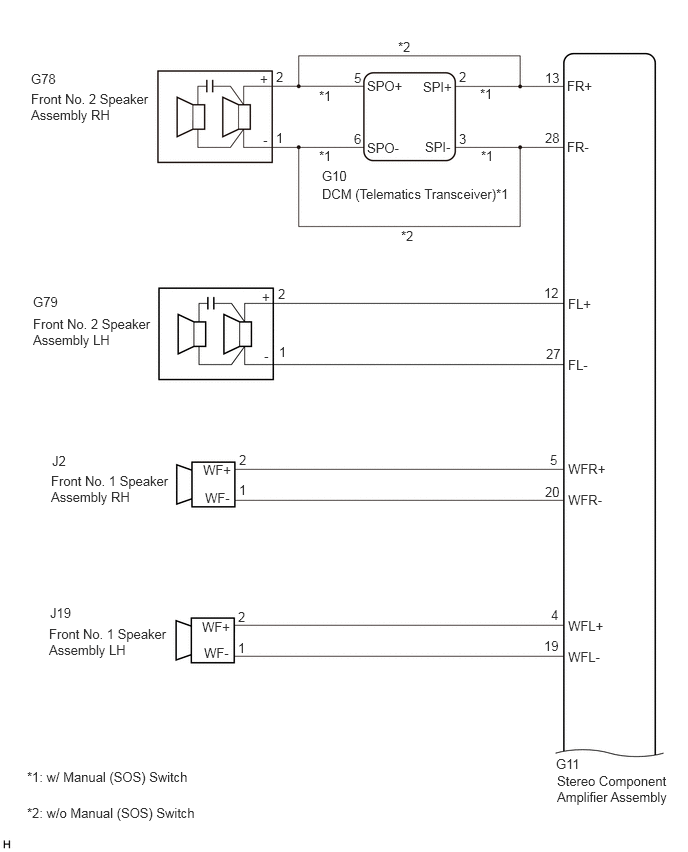

GTY788493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

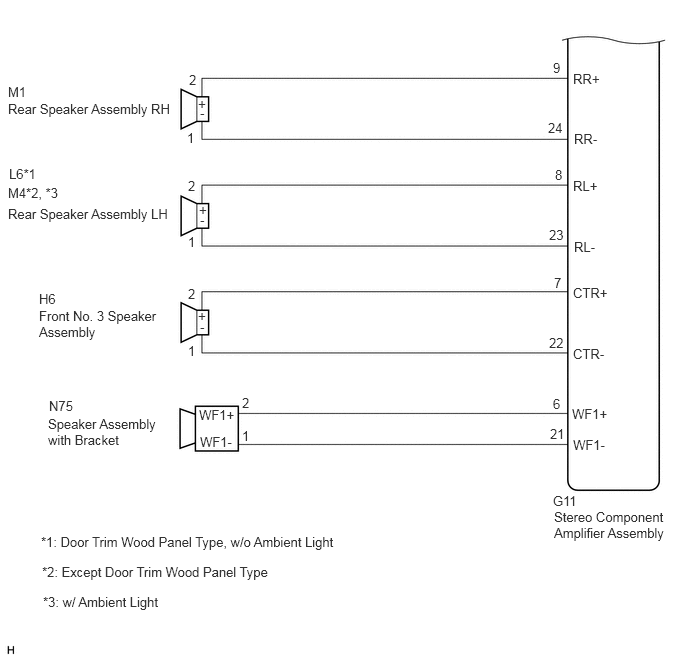

GTY803247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 17 Speakers

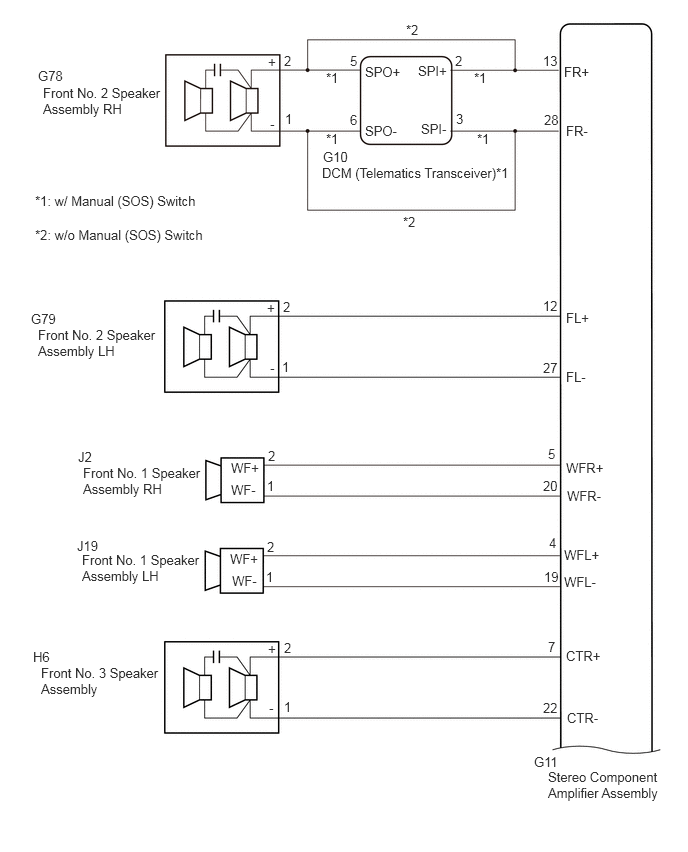

GTY789195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

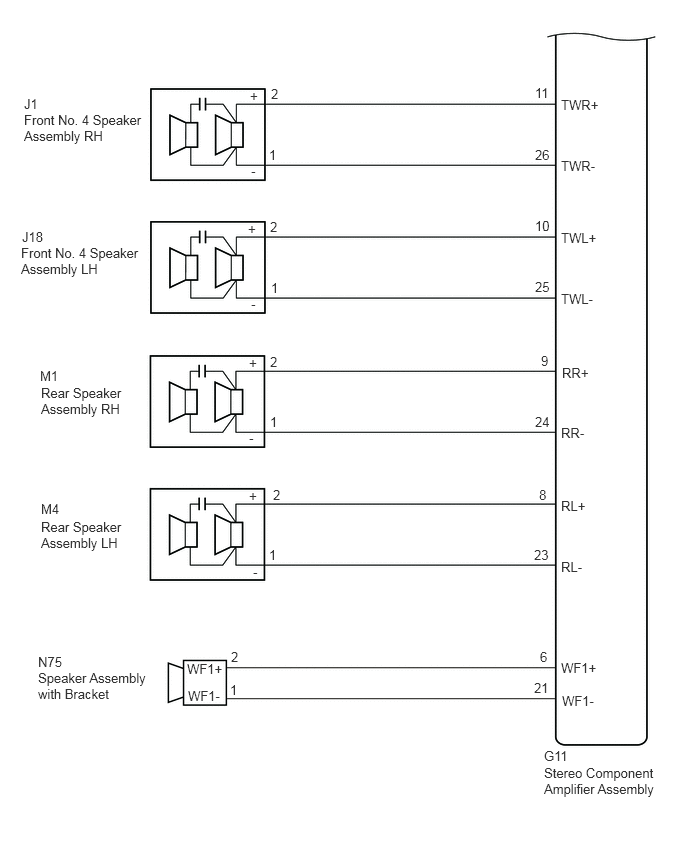

GTY819956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
