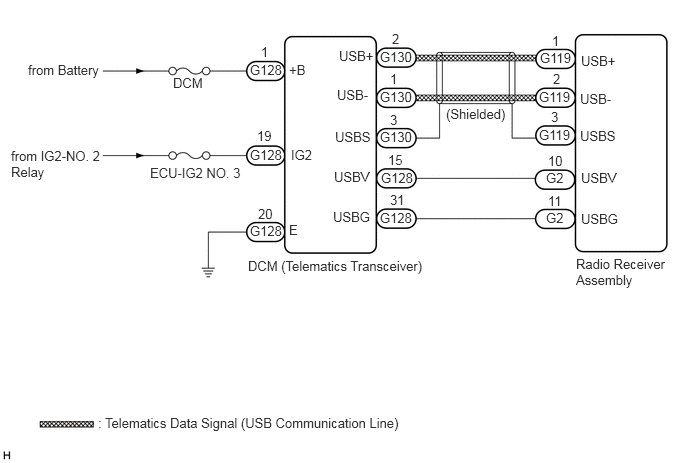

DTC B15DB: Telematics Transceiver Disconnected [10/2019 - 09/2022]: Wiring Diagram

GTY962067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
