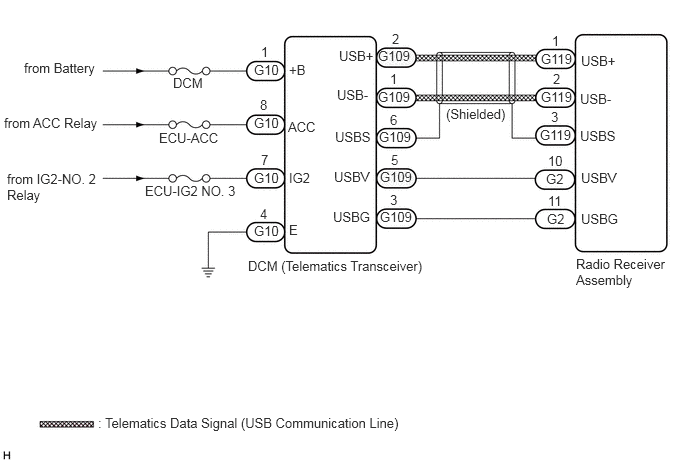

DTC B15DB: Telematics Transceiver Disconnected [06/2018 - 10/2019]: Wiring Diagram

GTY803403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
