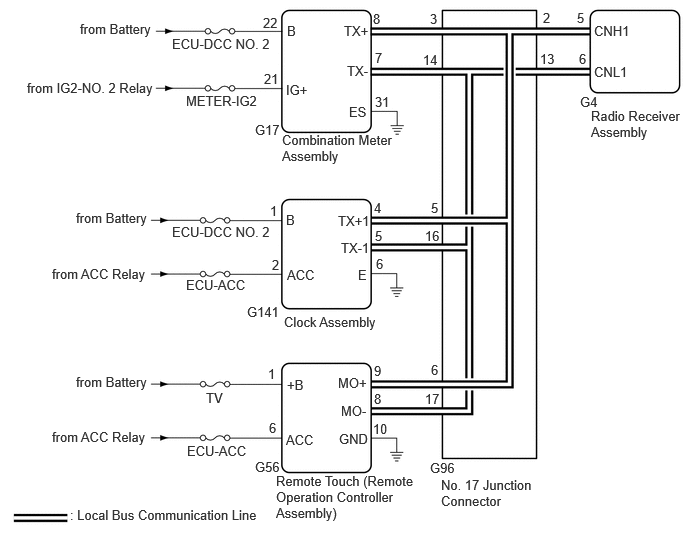

DTC B1323: Lost Communication with Haptic Device; DTC B1324: Lost Communication with Meter; DTC B1326: Lost Communication with Clock Device (Local-CAN) [08/2021 - 09/2022]: Wiring Diagram

GTY1088056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
