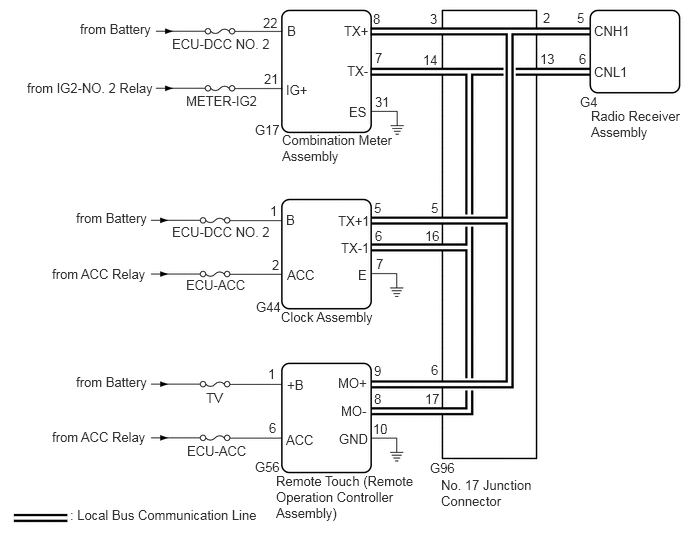

DTC B1323: Lost Communication with Haptic Device; DTC B1324: Lost Communication with Meter; DTC B1326: Lost Communication with Clock Device (Local-CAN) [06/2018 - 08/2021]: Wiring Diagram

GTY818196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
