Parts Location [06/2018 - 08/2021]: Illustration

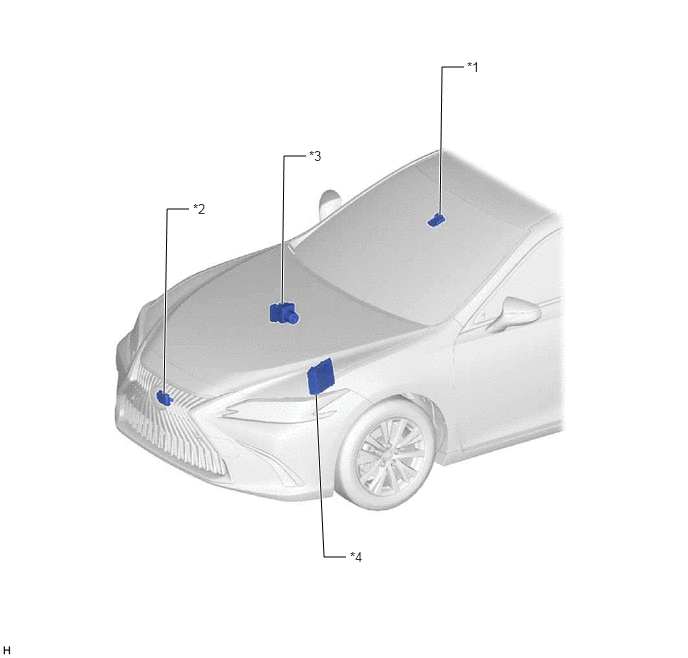

GTY778855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FORWARD RECOGNITION CAMERA *2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3 BRAKE ACTUATOR ASSEMBLY
- SKID CONTROL ECU		 *4 ECM

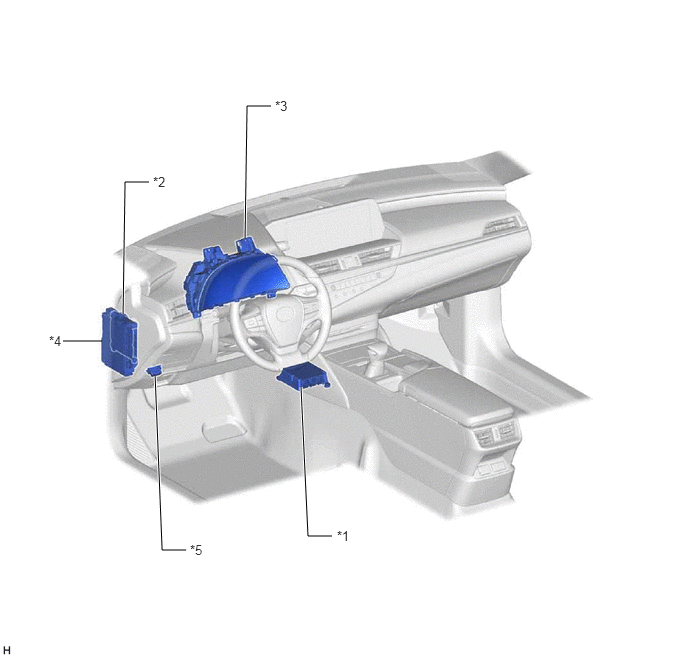

GTY812236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIRBAG ECU ASSEMBLY
- YAW RATE SENSOR		 *2 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3 COMBINATION METER ASSEMBLY *4 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 3 FUSE
*5 DLC3 - -
