Parking Support Brake System (Except Hybrid) - Diagnostics - Introduction
>>
PARKING SUPPORT BRAKE SYSTEM (for Gasoline Model)
>>

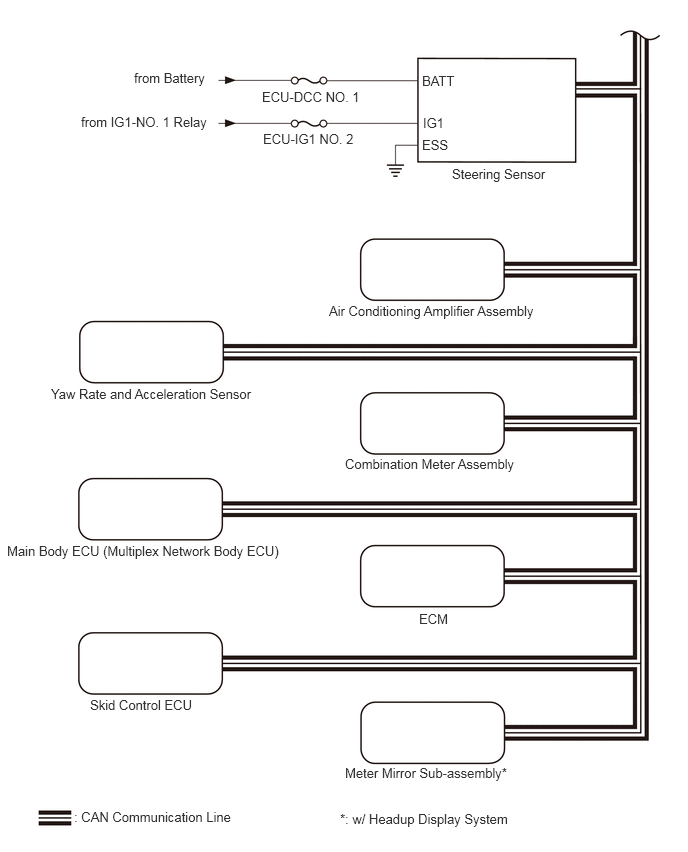

System Diagram [06/2018 - 08/2021]
>>

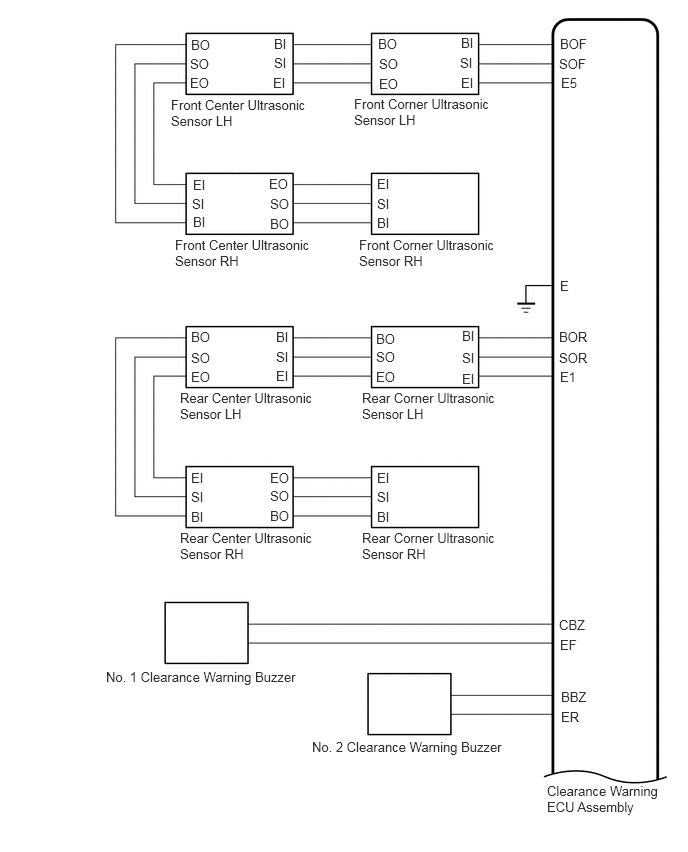

System Diagram [06/2018 - 08/2021]
System Diagram [06/2018 - 08/2021]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

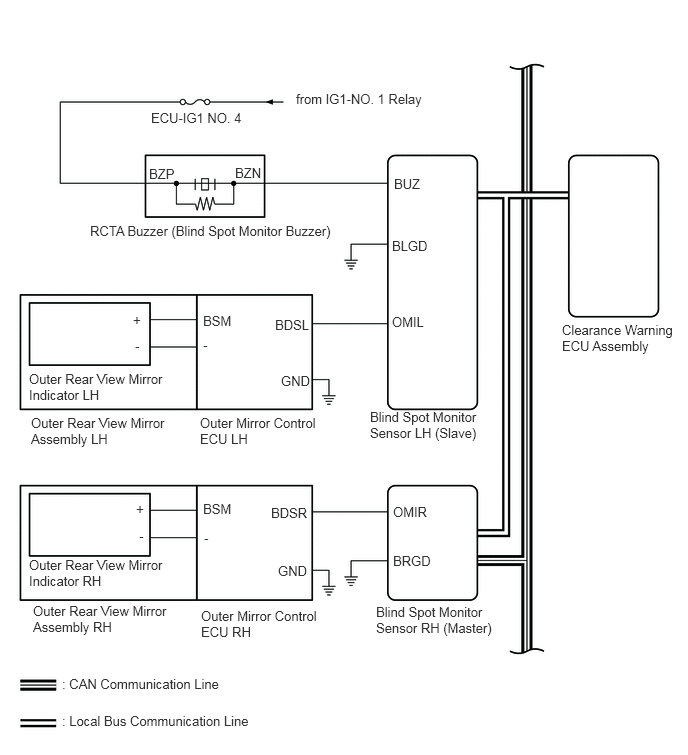

w/ Blind Spot Monitor System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

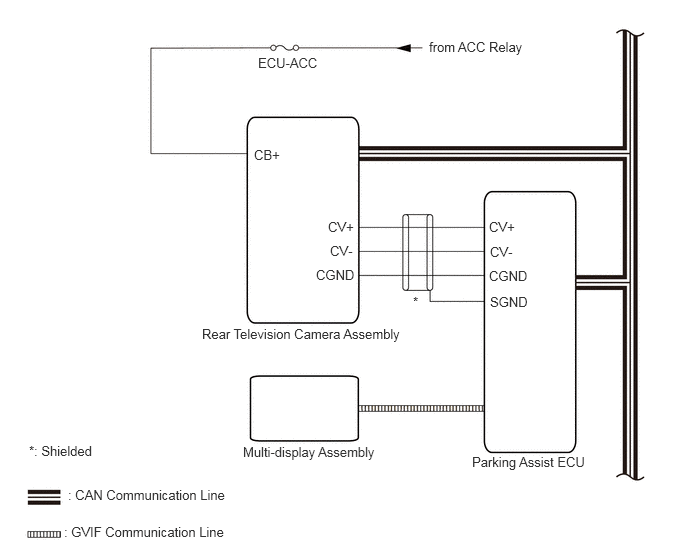

w/ Panoramic View Monitor System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
