DTC P0571-62: Brake Switch "A" Signal Compare Failure [06/2018 - 08/2020]: Wiring Diagram

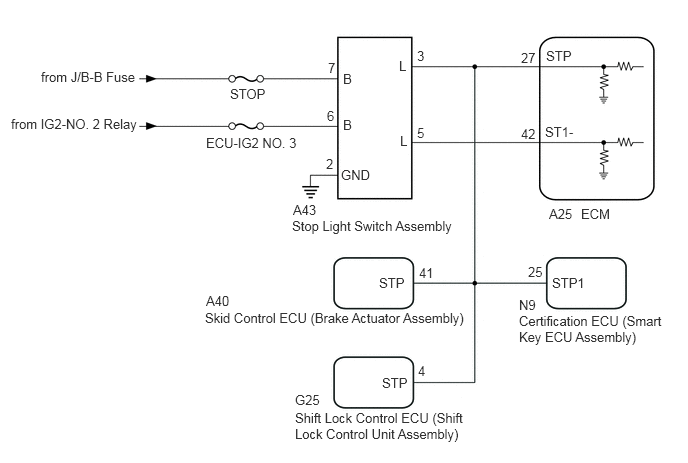

Fig 1: DTC P0571-62: Brake Switch "A" Signal Compare Failure [06/2018 - 08/2020]
GTY793456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
