Parts Location [06/2018 - 09/2022]: Illustration
Fig 1: Lin Communication System (For Gasoline Model) Replacement Components (1 Of 2) [06/2018 - 09/2022]
| *A | for Manual Tilt and Manual Telescopic Steering Column | *B | for Power Tilt and Power Telescopic Steering Column |
| *C | w/ Power Trunk Lid System | - | - |
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - DOOR F/L FUSE - DOOR F/R FUSE - DOOR R/L FUSE - DOOR R/R FUSE - S/ROOF FUSE - STRG LOCK FUSE - ECU-B NO. 1 FUSE |
| *3 | STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) | *4 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | ECU-DCC NO. 2 FUSE | *8 | DLC3 |

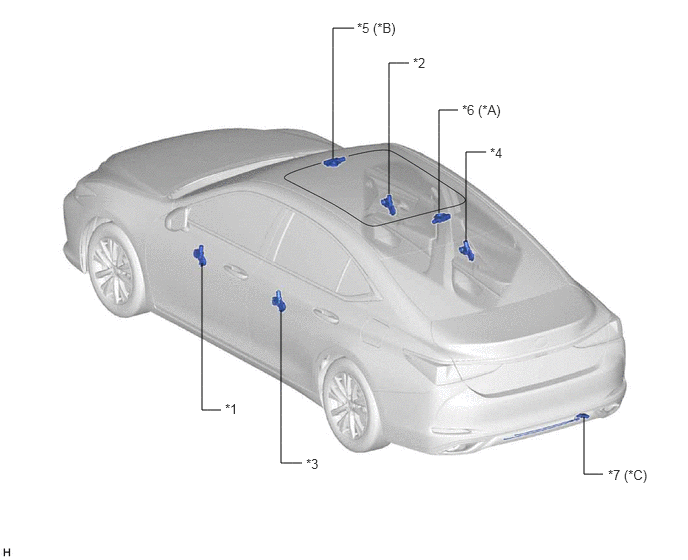

Fig 1: Lin Communication System (For Gasoline Model) Replacement Components (2 Of 2) [06/2018 - 09/2022]
| *A | w/ Panoramic Moon Roof System | *B | w/ Sliding Roof System |
| *C | w/ Power Trunk Lid System | - | - |
| *1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER DOOR) | *2 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT PASSENGER DOOR) |
| *3 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR LH DOOR) | *4 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH DOOR) |
| *5 | SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) | *6 | SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
| *7 | KICK DOOR CONTROL SENSOR | - | - |
