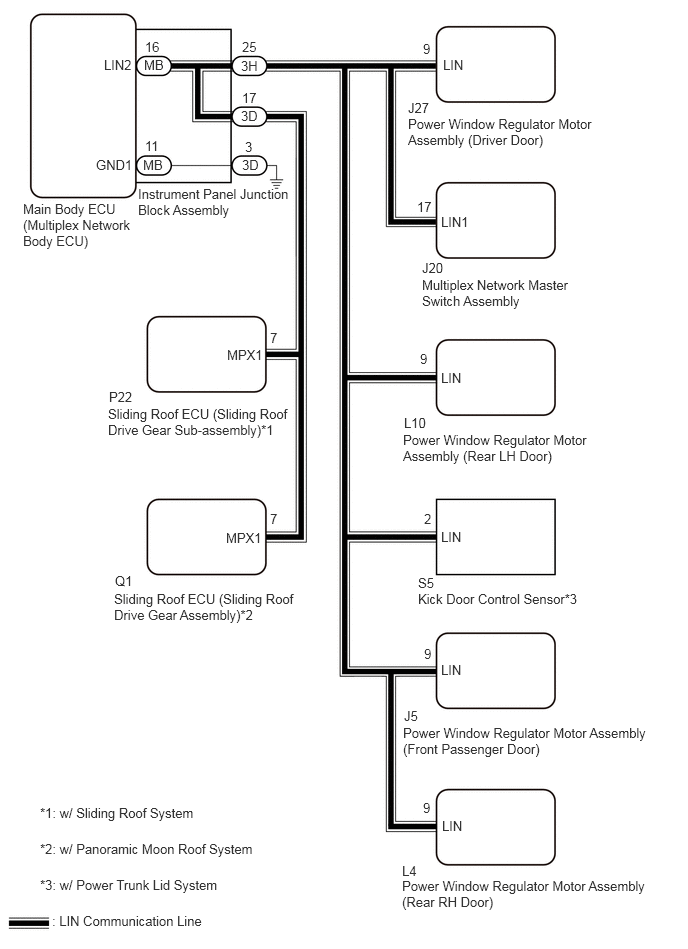

DTC B2325: LIN Communication Bus Malfunction [06/2018 - ]: Wiring Diagram

GTY801755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
