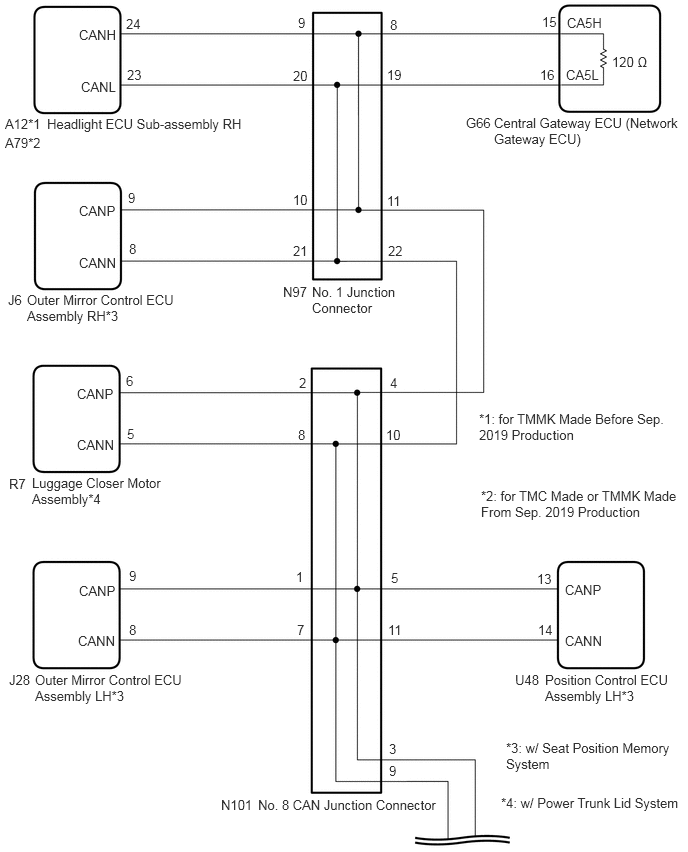

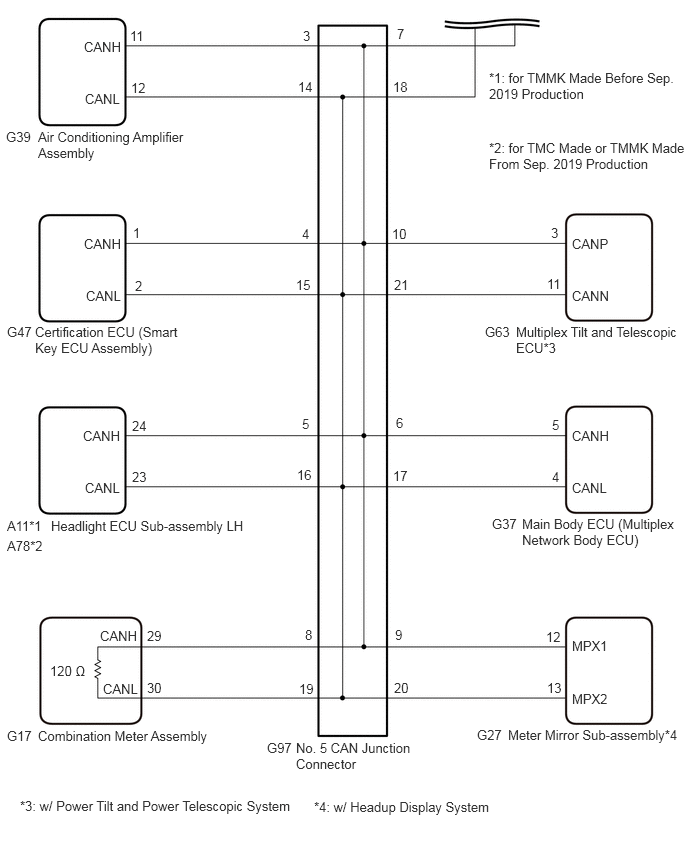

Check Bus 5 Lines for Short Circuit [07/2019 - 10/2019]: Wiring Diagram

GTY955492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY955477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
