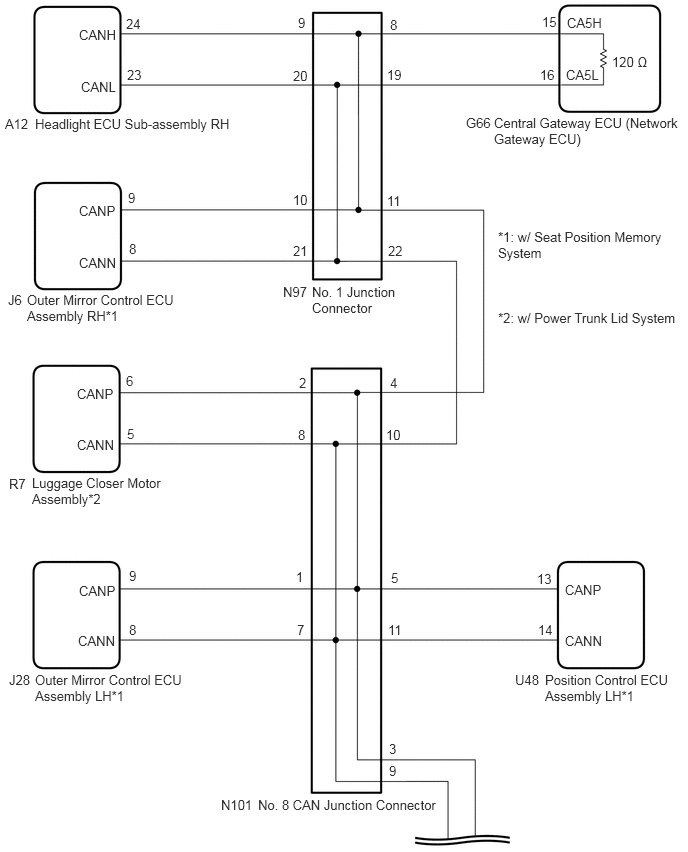

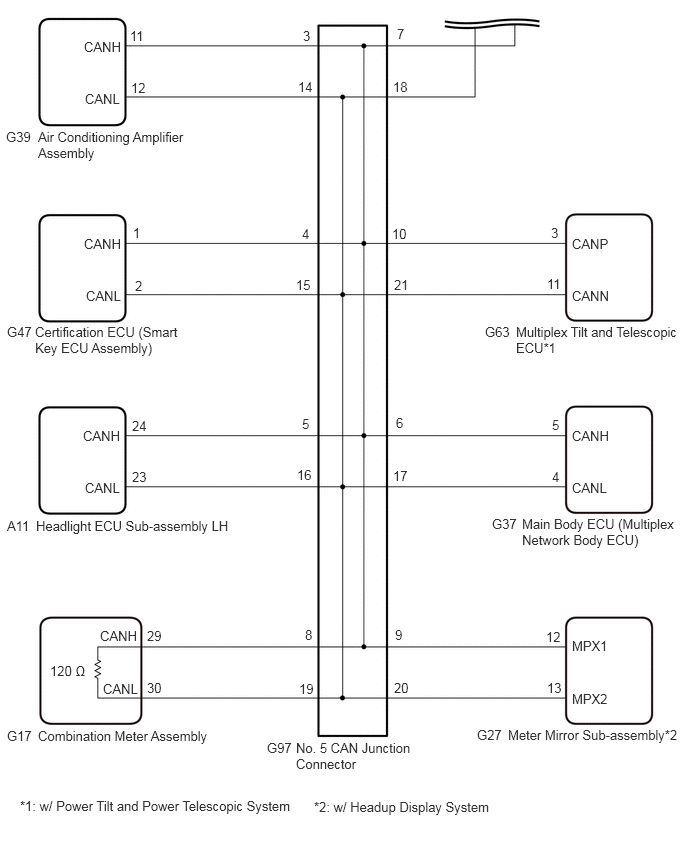

Check Bus 5 Lines for Short Circuit [06/2018 - 07/2019]: Wiring Diagram

GTY785224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY810621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
