CAN COMMUNICATION SYSTEM (for Gasoline Model)
>>
Check Bus 4 Lines for Short Circuit [08/2020 - 08/2021]
>>

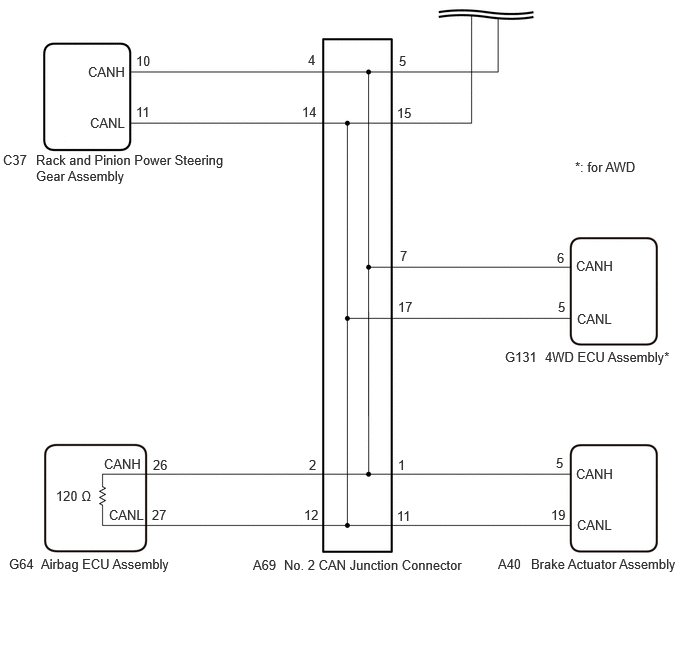

Wiring Diagram
Check Bus 4 Lines for Short Circuit [08/2020 - 08/2021]: Wiring Diagram
