Rear Television Camera Communication Stop Mode [06/2018 - 08/2021]: Procedure
- CHECK VEHICLE TYPE
- Check vehicle type.
Result
Result Proceed to w/ Panoramic View Monitor System A w/o Panoramic View Monitor System B
Result:
B
See step 4
Result:
A
See step 2
- Check vehicle type.
- CHECK FOR OPEN IN CAN BUS LINES (REAR TELEVISION CAMERA ASSEMBLY BRANCH LINE)
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the T2 rear television camera assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

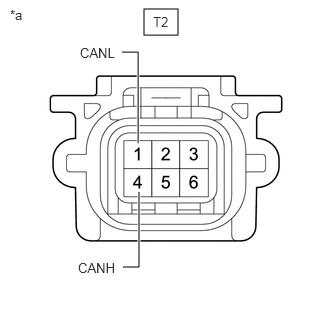

Tester Connection Condition Specified Condition T2-4 (CANH) - T2-1 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω *a Front view of wire harness connector
(to Rear Television Camera Assembly)Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (REAR TELEVISION CAMERA ASSEMBLY)
Result:
OK
See step 3
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

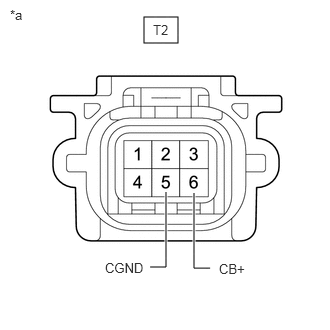

Tester Connection Condition Specified Condition T2-5 (CGND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω *a Front view of wire harness connector
(to Rear Television Camera Assembly) - Reconnect the cable to the negative (-) battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition T2-6 (CB+) - Body ground Engine switch on (ACC) 11 to 14 V Result
Result OK NG
Result:
OK
REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to REMOVAL [06/2018 - 09/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN BUS LINES (REAR TELEVISION CAMERA ASSEMBLY BRANCH LINE)
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the T1 rear television camera assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition T1-4 (CANH) - T1-1 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω *a Front view of wire harness connector
(to Rear Television Camera Assembly)Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (REAR TELEVISION CAMERA ASSEMBLY)
Result:
OK
See step 5
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition T1-5 (CGND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω *a Front view of wire harness connector
(to Rear Television Camera Assembly) - Reconnect the cable to the negative (-) battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition T1-6 (CB+) - Body ground Engine switch on (ACC) 5.5 to 7.05 V Result
Result OK NG
Result:
OK
REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to REMOVAL [06/2018 - 09/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
