Home >> Lexus >> 2021 >> ES 350 Luxury >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Can Communication System (Except Hybrid) - Circuit Tests (2 Of 4) >> CAN COMMUNICATION SYSTEM (for Gasoline Model) >> Open in Bus 2 Main Bus Line [08/2021 - ] >> Wiring Diagram

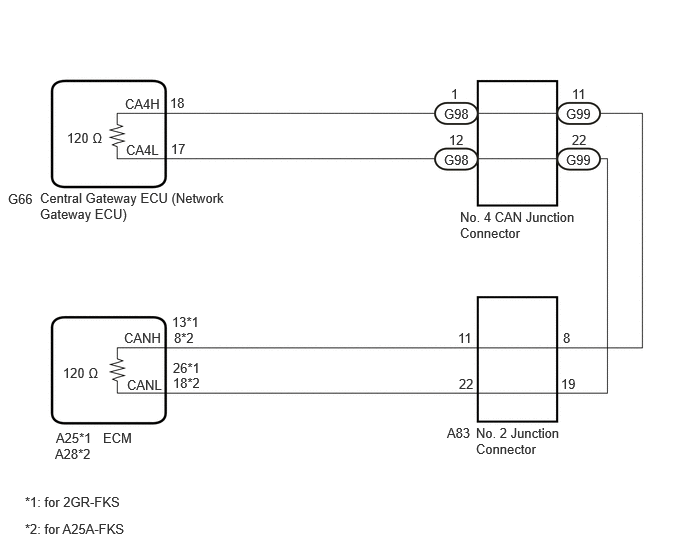

Open in Bus 2 Main Bus Line [08/2021 - ]: Wiring Diagram

GTY1086389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
