Headlight ECU LH Communication Stop Mode [07/2019 - 10/2019]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the A11 or A78 headlight ECU sub-assembly LH connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

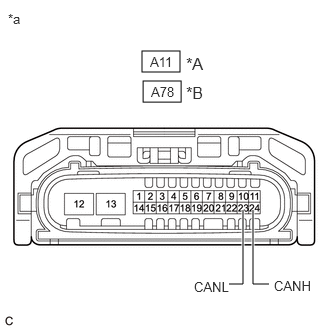

   *A	for TMMK Made Before Sep. 2019 Production
   *B	for TMC Made or TMMK Made From Sep. 2019 Production
   *a	Front view of wire harness connector (to Headlight ECU Sub-assembly LH)

   Standard Resistance

   FOR TMMK MADE BEFORE SEP. 2019 PRODUCTION:



   Tester Connection	Condition	Specified Condition
   A11-24 (CANH) - A11-23 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   FOR TMC MADE OR TMMK MADE FROM SEP. 2019 PRODUCTION:



   Tester Connection	Condition	Specified Condition
   A78-24 (CANH) - A78-23 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH)

Result:

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

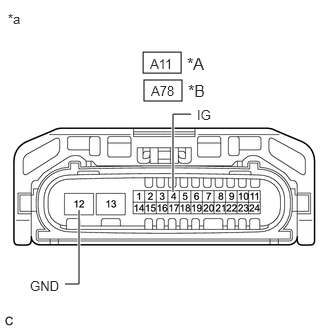

   *A	for TMMK Made Before Sep. 2019 Production
   *B	for TMC Made or TMMK Made From Sep. 2019 Production
   *a	Front view of wire harness connector (to Headlight ECU Sub-assembly LH)

   Standard Resistance

   FOR TMMK MADE BEFORE SEP. 2019 PRODUCTION:



   Tester Connection	Condition	Specified Condition
   A11-12 (GND) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

   FOR TMC MADE OR TMMK MADE FROM SEP. 2019 PRODUCTION:



   Tester Connection	Condition	Specified Condition
   A78-12 (GND) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

2. Reconnect the cable to the negative (-) battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   FOR TMMK MADE BEFORE SEP. 2019 PRODUCTION:



   Tester Connection	Condition	Specified Condition
   A11-4 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

   FOR TMC MADE OR TMMK MADE FROM SEP. 2019 PRODUCTION:



   Tester Connection	Condition	Specified Condition
   A78-4 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

   Result

   Result
   OK
   NG

Result:

OK

REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 09/2022]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
