Parts Location [08/2021 - 09/2022]: Illustration

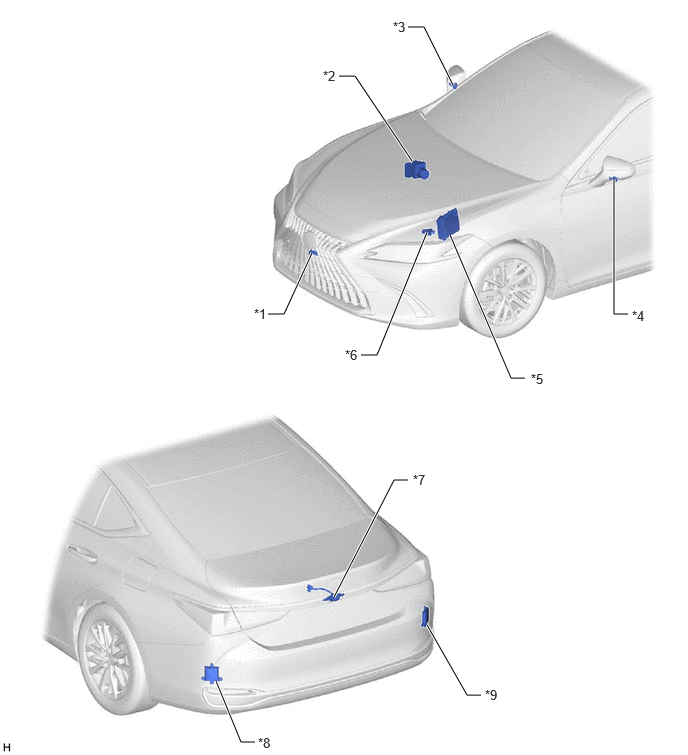

| *1 | FRONT TELEVISION CAMERA ASSEMBLY | *2 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *3 | SIDE TELEVISION CAMERA ASSEMBLY RH | *4 | SIDE TELEVISION CAMERA ASSEMBLY LH |
| *5 | ECM | *6 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *7 | REAR TELEVISION CAMERA ASSEMBLY | *8 | BLIND SPOT MONITOR SENSOR LH |
| *9 | BLIND SPOT MONITOR SENSOR RH | *10 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *11 | OUTER REAR VIEW MIRROR ASSEMBLY RH | - | - |

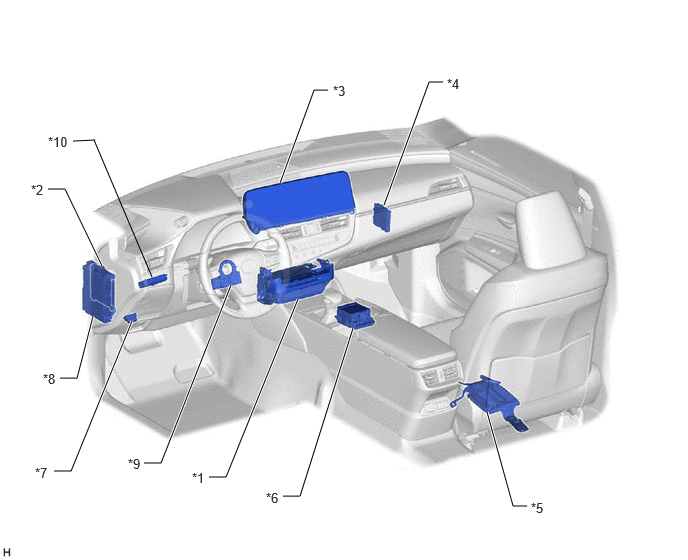

| *1 | RADIO RECEIVER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | CLEARANCE WARNING ECU ASSEMBLY |
| *5 | PARKING ASSIST ECU | *6 | REMOTE TOUCH (REMOTE OPERATION CONTROLLER ASSEMBLY) |
| *7 | DLC3 | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE - ECU-DCC NO. 1 FUSE - ECU-ACC FUSE - ECU-B NO. 2 FUSE - ECU-IG1 NO. 2 FUSE - BKUP LP Relay |
| *9 | STEERING SENSOR | *10 | PANORAMIC VIEW MONITOR SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY) |
