DTC C1683: Side Camera Feedback Malfunction [06/2018 - 09/2022]: Procedure
- CHECK FOR DTC
- Clear the DTCs.
Chassis > Circumference Monitoring Camera Control Module > Clear DTCs
- Check for DTCs.
Chassis > Circumference Monitoring Camera Control Module > Trouble Codes
OK
DTC C1683 is not output.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]
Result:
NG
See step 2
- Clear the DTCs.
- CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - OUTER REAR VIEW MIRROR ASSEMBLY RH)
- Disconnect the N43 parking assist ECU connector.
- Disconnect the J12 outer rear view mirror assembly RH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N43-40 (RCB+) - J12-2 (RCB+) Always Below 1 Ω N43-38 (RCV+) - J12-7 (RCV+) Always Below 1 Ω N43-16 (RCV-) - J12-6 (RCV-) Always Below 1 Ω N43-17 (RGND) - J12-1 (RGND) Always Below 1 Ω N43-39 (SGND) - J12-3 (SGND) Always Below 1 Ω N43-40 (RCB+) or J12-2 (RCB+) - Body ground Always 10 kΩ or higher N43-38 (RCV+) or J12-7 (RCV+) - Body ground Always 10 kΩ or higher N43-16 (RCV-) or J12-6 (RCV-) - Body ground Always 10 kΩ or higher N43-17 (RGND) or J12-1 (RGND) - Body ground Always 10 kΩ or higher N43-39 (SGND) or J12-3 (SGND) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK PARKING ASSIST ECU (RCV-, RGND)
- Disconnect the N43 parking assist ECU connector.
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Parking Assist ECU)Standard Resistance
Tester Connection Condition Specified Condition 17 (RGND) - Body ground Always Below 1 Ω 16 (RCV-) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPLACE PARKING ASSIST ECU. Refer to REMOVAL [06/2018 - 09/2022]
Result:
OK
See step 4
- CHECK PARKING ASSIST ECU (RCB+, RGND)
- Remove the parking assist ECU with the connector still connected.
*a Component with harness connected
(Parking Assist ECU) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N43-17 (RGND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition N43-40 (RCB+) - N43-17 (RGND) Engine switch on (IG) 5.5 to 7.05 V Result
Proceed to OK NG
Result:
NG
REPLACE PARKING ASSIST ECU. Refer to REMOVAL [06/2018 - 09/2022]
Result:
OK
See step 5
- Remove the parking assist ECU with the connector still connected.
- CHECK SIDE TELEVISION CAMERA ASSEMBLY RH (RCV+, RGND)
- Remove the parking assist ECU with the connector still connected.
- Using an oscilloscope, check the waveform of the side television camera assembly RH.
HINT:
A waterproof connector is used for the side television camera assembly RH. Therefore, inspect the waveform at the parking assist ECU with the connector connected.

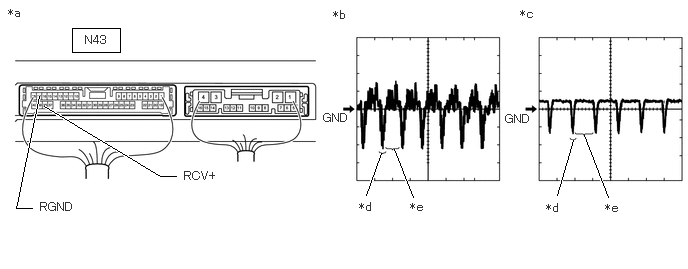

*a Component with harness connected
(Parking Assist ECU)*b Waveform 1 (camera lens not covered, displaying an image) *c Waveform 2 (camera lens covered, blacking out the screen) *d Synchronization Signal *e Video Waveform - - HINT:
- The video waveform changes according to the image sent by the side television camera assembly RH.
- The video waveform is constantly output when the engine switch is on (ACC).
MEASUREMENT CONDITIONItem Content Tester Connection N43-38 (RCV+) - N43-17 (RGND) Tool Setting 200 mV/DIV., 50 μsec./DIV. Condition Engine switch on (IG), panoramic view monitor system operating OK
Waveform is similar to that shown in illustration.
Result
Proceed to OK NG
Result:
OK
REPLACE PARKING ASSIST ECU. Refer to REMOVAL [06/2018 - 09/2022]
Result:
NG
See step 6
- REPLACE SIDE TELEVISION CAMERA ASSEMBLY RH
- Replace the side television camera assembly RH with a new or normally functioning one.
Refer to REMOVAL [06/2018 - 09/2022]
Result
Proceed to NEXT
Result:
NEXT
See step 7
- Replace the side television camera assembly RH with a new or normally functioning one.
- CHECK FOR DTC
- Clear the DTCs.
Chassis > Circumference Monitoring Camera Control Module > Clear DTCs
- Check for DTCs.
Chassis > Circumference Monitoring Camera Control Module > Trouble Codes
OK
DTC C1683 is not output.
Result
Proceed to OK NG
Result:
OK
END (SIDE TELEVISION CAMERA ASSEMBLY RH IS DEFECTIVE)
Result:
NG
REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH. Refer to REMOVAL [06/2018 - 09/2022]
- Clear the DTCs.
