Removal [06/2018 - 09/2022]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [06/2018 - ]

  2. REMOVE TELEVISION CAMERA ASSEMBLY WITH WIRE

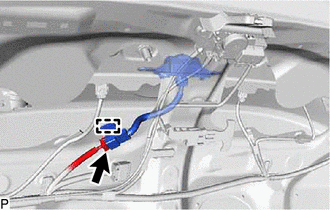

    1. Disconnect the connector.
      GTY789334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

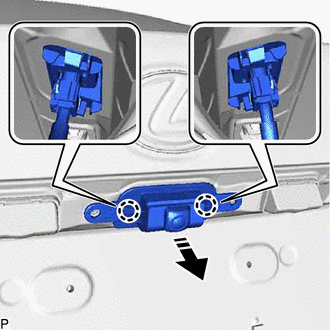

    3. Disengage the 2 claws to remove the television camera assembly with wire as shown in the illustration.
      GTY782722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE TELEVISION CAMERA WIRE
    1. Disconnect the connector to remove the television camera wire.
      GTY789389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR TELEVISION CAMERA ASSEMBLY
