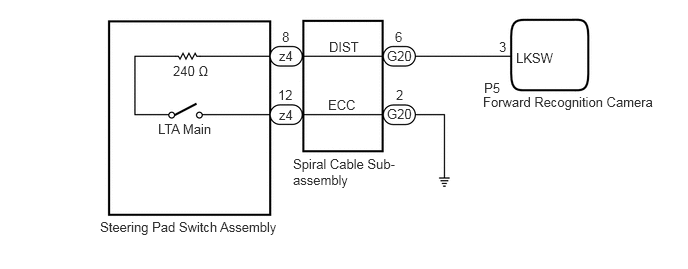

Steering Pad Switch Circuit [06/2018 - 08/2020]: Wiring Diagram

GTY822529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
