Parts Location [06/2018 - ]: Illustration

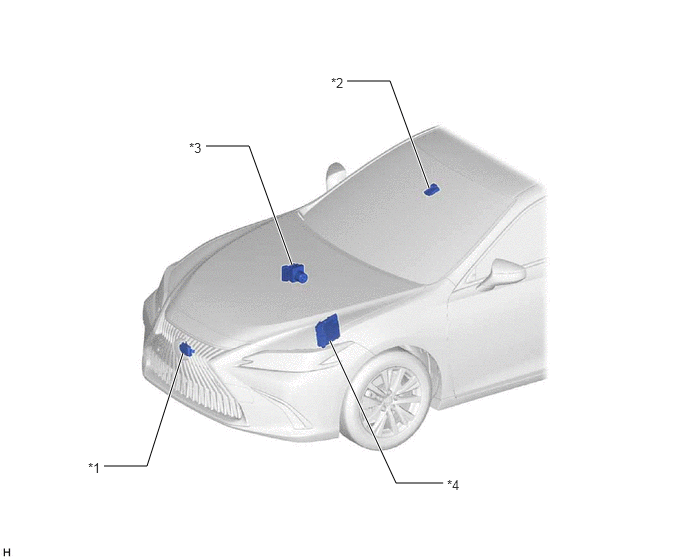

Fig 1: Dynamic Radar Cruise Control System Component Location (Except Hybrid) (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	*2	FORWARD RECOGNITION CAMERA
*3	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*4	ECM

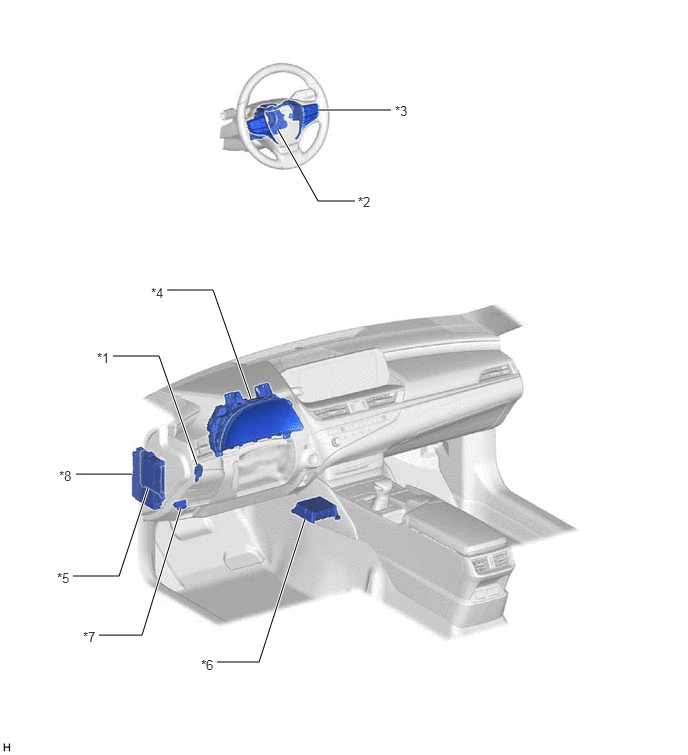

Fig 1: Dynamic Radar Cruise Control System Component Location (Except Hybrid) (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STOP LIGHT SWITCH ASSEMBLY	*2	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - SPIRAL CABLE SUB-ASSEMBLY - STEERING SENSOR
*3	STEERING PAD SWITCH ASSEMBLY (CRUISE CONTROL SWITCH) - VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH - CRUISE CONTROL MAIN SWITCH - -SET SWITCH - +RES SWITCH - CANCEL SWITCH	*4	COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - CRUISE CONTROL INDICATOR - CRUISE SET INDICATOR - WARNING BUZZER - MASTER WARNING LIGHT
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR
*7	DLC3	*8	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - ECU-IG1 NO. 3 FUSE - ECU-IG2 NO. 3 FUSE
