Steering Pad Switch Circuit [08/2020 - ]: Wiring Diagram

  1. For 2GR-FKS

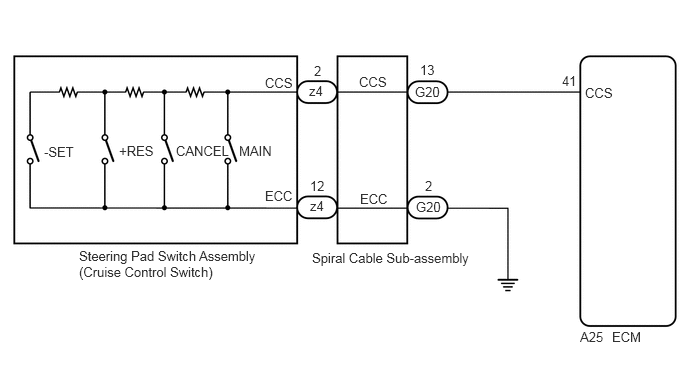

    Fig 1: For 2GR-FKS [08/2020 - ]
    GTY805145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. For A25A-FKS

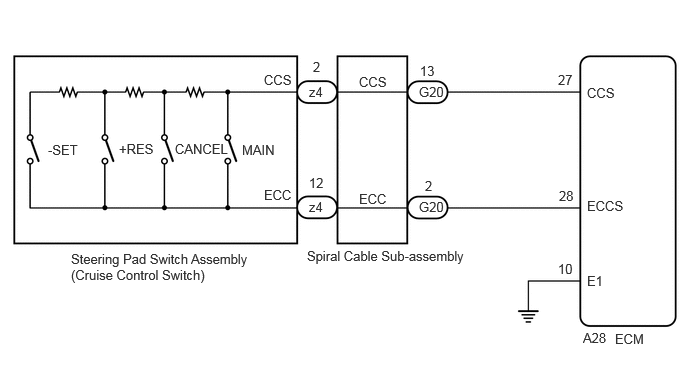

    Fig 2: For A25A-FKS [08/2020 - ]
    GTY947593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
