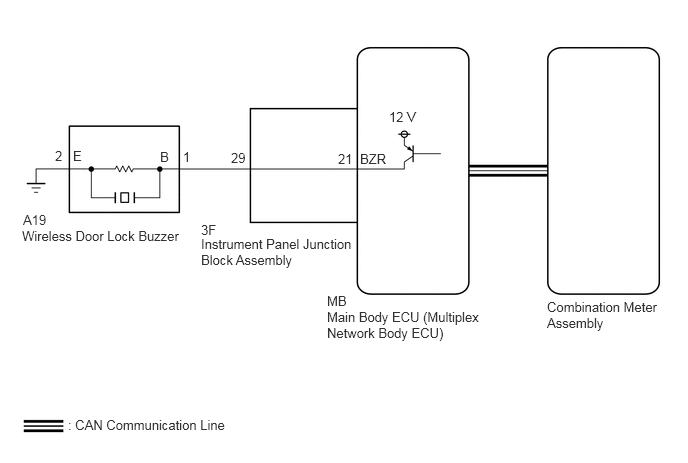

No Answer-Back [06/2018 - ]: Wiring Diagram

GTY837092

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
