Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY (for Single Type)

    Refer to REMOVAL [06/2018 - 08/2021]

  2. REMOVE REAR BUMPER ASSEMBLY (for Dual Type)

    Refer to REMOVAL [06/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 08/2021]

  3. REMOVE ELECTRICAL KEY ANTENNA

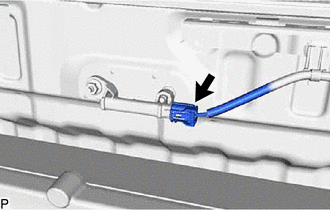

    1. Disconnect the connector.
      GTY807794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

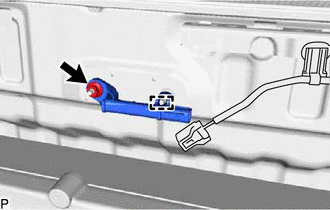

    2. Remove the nut.
      GTY807796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guide to remove the electrical key antenna.
      NOTE:

      Be careful when removing the electrical key antenna. If the electrical key antenna is dropped, replace it with a new one.
