Parts Location [06/2018 - ]: Illustration

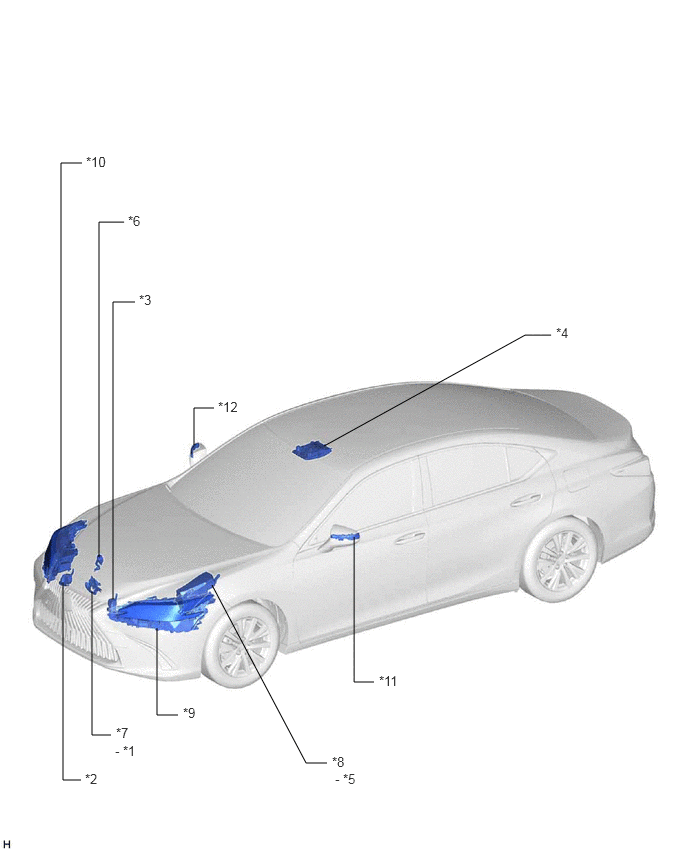

Fig 1: Theft Deterrent System (For Gasoline Model) Replacement Components (1 of 3) [06/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE HOOD COURTESY SWITCH	*2	HIGH PITCHED HORN ASSEMBLY
*3	LOW PITCHED HORN ASSEMBLY	*4	MAP LIGHT SUB-ASSEMBLY - INTERIOR LIGHT
*5	HORN RELAY	*6	SECURITY HORN ASSEMBLY
*7	HOOD LOCK ASSEMBLY	*8	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - HORN FUSE
*9	HEADLIGHT ASSEMBLY LH - LOW BEAM - TURN SIGNAL LIGHT	*10	HEADLIGHT ASSEMBLY RH - LOW BEAM - TURN SIGNAL LIGHT
*11	SIDE TURN SIGNAL LIGHT ASSEMBLY LH	*12	SIDE TURN SIGNAL LIGHT ASSEMBLY RH

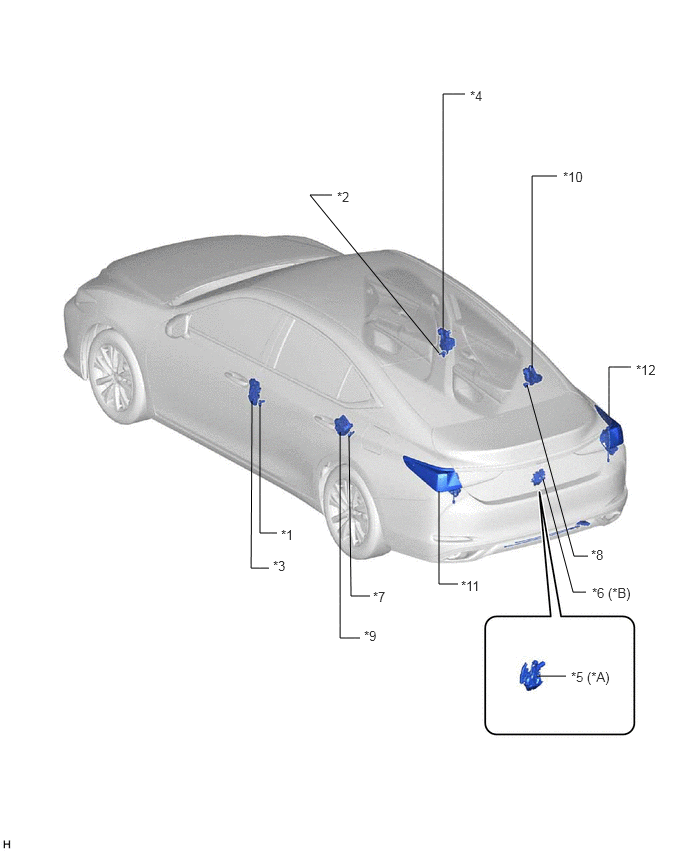

Fig 1: Theft Deterrent System (For Gasoline Model) Replacement Components (2 of 3) [06/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Power Trunk Lid System	*B	w/o Power Trunk Lid System
*1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)	*2	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)
*3	FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH	*4	FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH
*5	LUGGAGE DOOR CLOSER ASSEMBLY	*6	LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
*7	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)	*8	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)
*9	REAR DOOR LOCK WITH MOTOR ASSEMBLY LH	*10	REAR DOOR LOCK WITH MOTOR ASSEMBLY RH
*11	REAR COMBINATION LIGHT ASSEMBLY LH - TAIL LIGHT - TURN SIGNAL LIGHT	*12	REAR COMBINATION LIGHT ASSEMBLY RH - TAIL LIGHT - TURN SIGNAL LIGHT

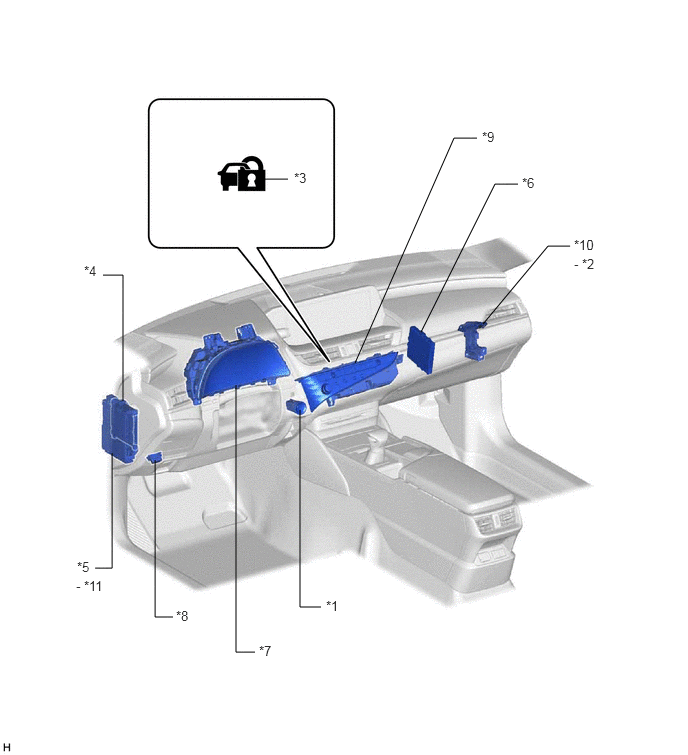

Fig 1: Theft Deterrent System (For Gasoline Model) Replacement Components (3 of 3) [06/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE SWITCH	*2	S-HORN RELAY
*3	SECURITY INDICATOR LIGHT	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE	*6	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*7	COMBINATION METER ASSEMBLY	*8	DLC3
*9	AIR CONDITIONING CONTROL ASSEMBLY	*10	NO. 5 RELAY BLOCK
*11	S-HORN FUSE	-	-
