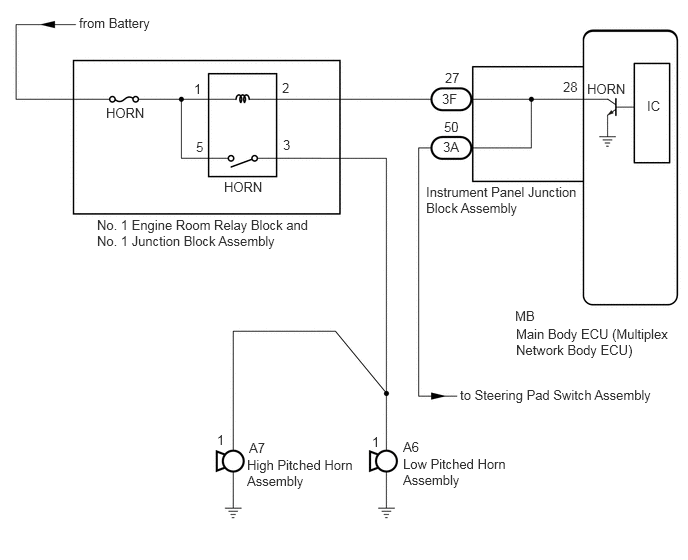

Horn Circuit [06/2018 - ]: Wiring Diagram

GTY791925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
