DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [09/2022 - ]: Wiring Diagram

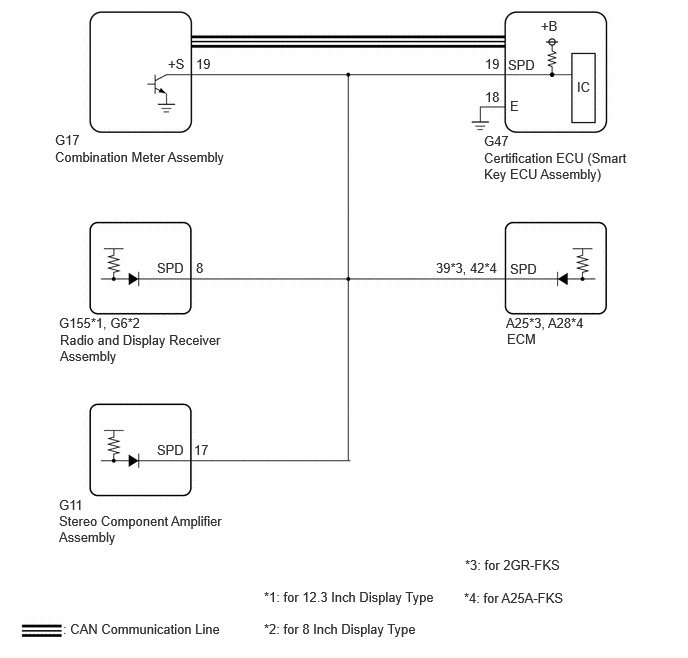

Fig 1: DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [09/2022 - ]
GTY1127323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
