DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [08/2020 - 09/2022]: Wiring Diagram

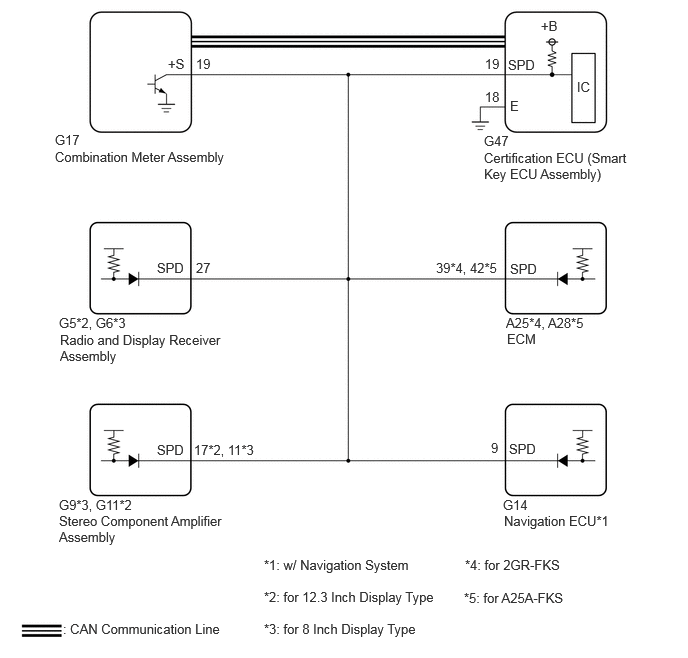

Fig 1: DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [08/2020 - 09/2022]
GTY949890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
