DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [06/2018 - 08/2020]: Wiring Diagram

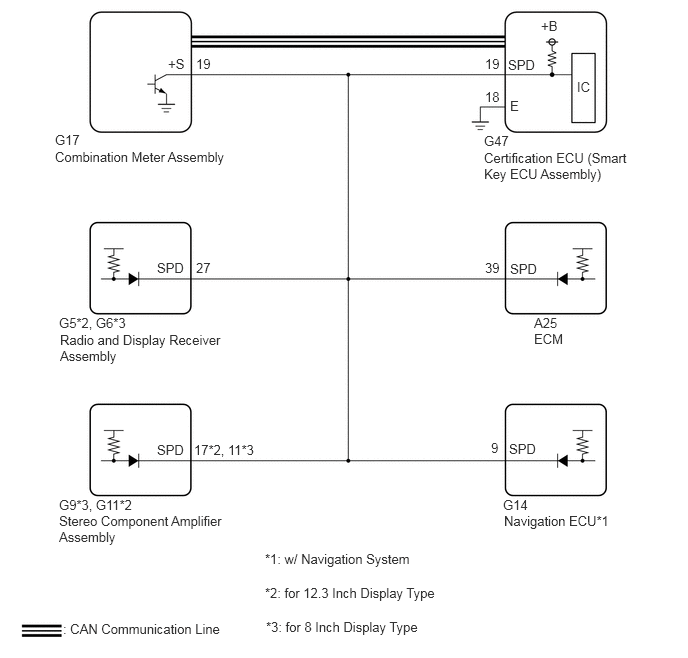

Fig 1: DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [06/2018 - 08/2020]
GTY835545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
