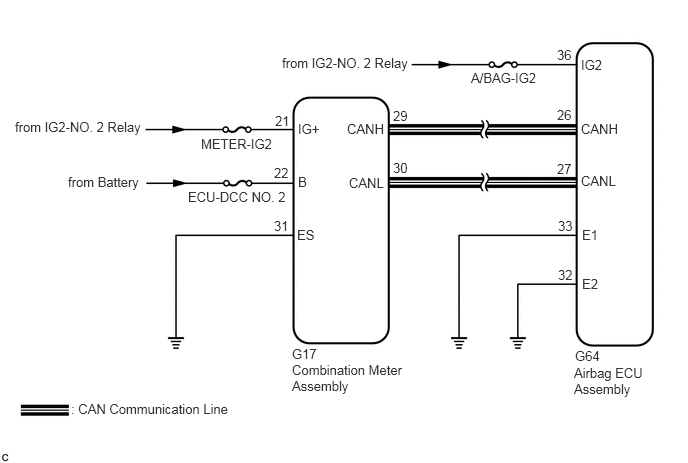

SRS Warning Light does not Come ON [06/2018 - 08/2020]: Wiring Diagram

GTY792635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
