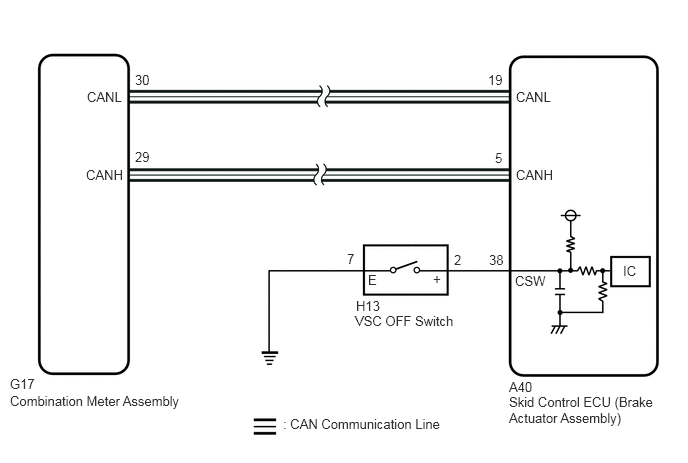

VSC OFF Switch Circuit [06/2018 - ]: Wiring Diagram

GTY806824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
