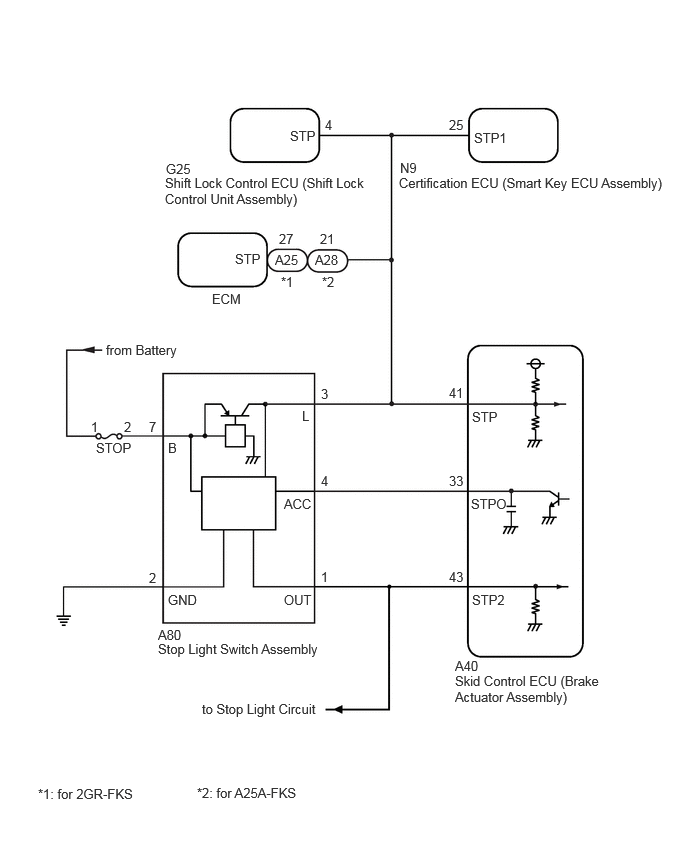

DTC P0571-11: Brake Switch "A" Circuit Short to Ground [08/2020 - ]: Wiring Diagram

GTY958608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
