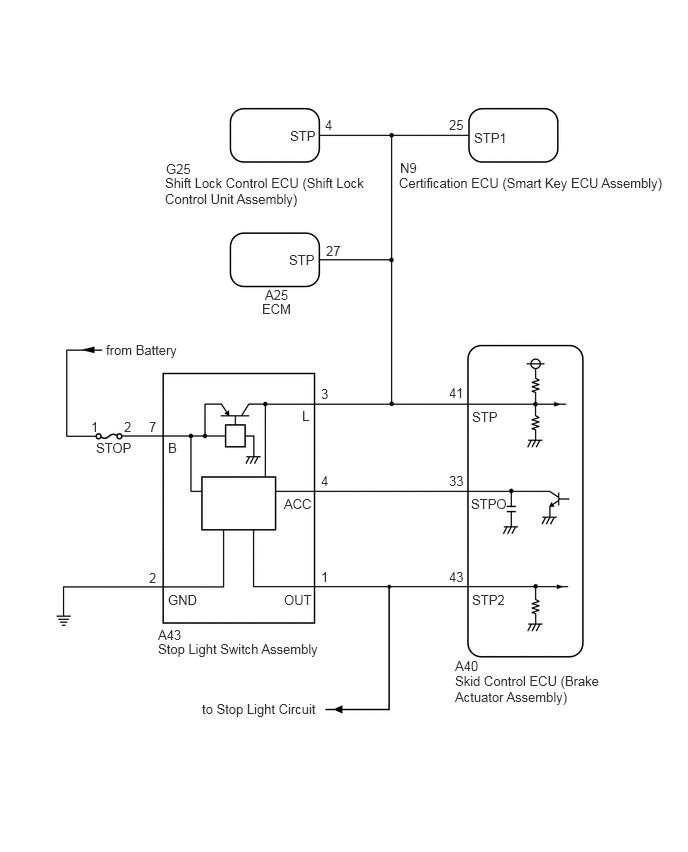

DTC P0571-11: Brake Switch "A" Circuit Short to Ground [06/2018 - 08/2020]: Wiring Diagram

GTY803998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
