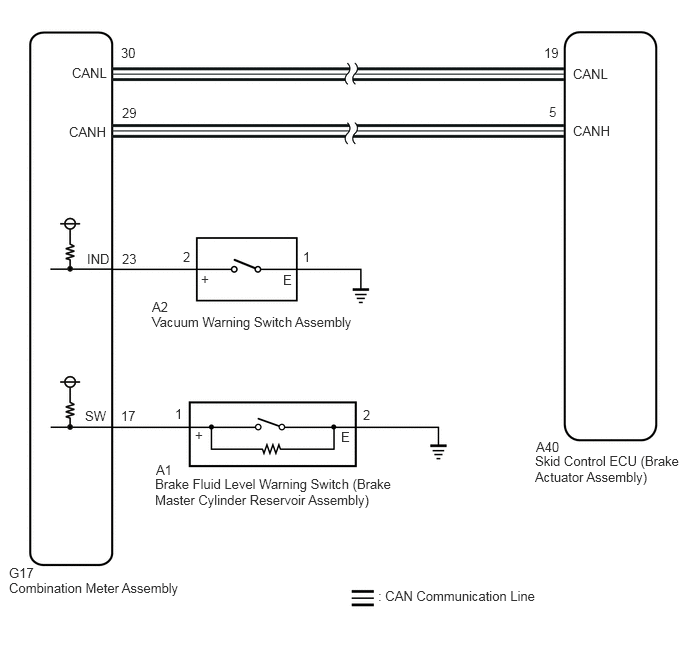

Brake Warning Light Remains ON [06/2018 - ]: Wiring Diagram

GTY778989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
